System requirements and prerequisites

Resilio 6.0 system requirements and prerequisites.

Enterprise Hybrid Work Jobs

Enterprise Hybrid Work Job deployments

For use case scenarios involving the Enterprise Hybrid Work Job, we recommend deploying the Management Console and the Primary Storage Agent on the same host, in close proximity to the file server to minimize latency and maximize performance.

These are the minimum requirements for running the Management Console and the Primary Storage Agent for a 100 users deployment:

  • Operating system: Windows Server 2022 or newer
  • CPU: 8 cores
  • RAM: 64 GB
  • Storage: 200 GB (assuming single VM for MC and Primary Storage Agent)
  • Network: public DNS name or IP address

Primary Storage Agents in Enterprise Hybrid Work Jobs

Enterprise Hybrid Work Job deployments

For use case scenarios involving the Enterprise Hybrid Work Job, we recommend deploying the Management Console and the Primary Storage Agent on the same host, in close proximity to the file server to minimize latency and maximize performance.

These are the minimum requirements for running the Management Console and the Primary Storage Agent for a 100 users deployment:

  • Operating system: Windows Server 2022 or newer
  • CPU: 8 cores
  • RAM: 64 GB
  • Storage: 200 GB (assuming single VM for MC and Primary Storage Agent)
  • Network: public DNS name or IP address

End user Agents in Enterprise Hybrid Work Jobs

These are the minimum requirements for user Agents participating in Enterprise Hybrid Work Jobs:

  • Operating system: Windows 11 x64, macOS 26 (Tahoe)
  • Local admin permissions for Agent installation

Server and End user Agents in non-Enterprise Hybrid Work Jobs

These are the minimum requirements for user Agents participating in non-Enterprise Hybrid Work Jobs:

  • Operating system: Windows 11 x64, macOS 26 (Tahoe)
  • Local admin permissions for Agent installation

Windows domain environment (Microsoft Active Directory or Entra Domain Services) is required for Resilio deployments utilizing the Enterprise Hybrid Work Jobs. Enterprise Hybrid Work Jobs require specific SPN assignments and delegation to allow the Primary Storage Agent to impersonate end users when accessing the file server.

Active Directory setup

Important

Applying the following configuration changes in Active Directory requires domain administrator privileges.

SPN assignments and delegation

Before you proceed with setting up Resilio Active Everywhere 6.0 for Enterprise Hybrid Work Job perform the following steps to set up your Windows domain environment:

  1. Ensure that the system designated to run the Management Console and the Primary Storage Agent is a domain-joined Windows Server 2022 (or newer) machine that meets the minimum requirements.

  2. Assign service principal names (SPNs) for the Management Console and the Primary Storage Agent.

    • Management Console
      The Management Console SPN is required to authenticate Agents using the Kerberos-SPNEGO protocol. This protocol is always used by the Primary Storage Agent. Optionally, end user Agents can use it as well if their machines are domain-joined.

      Note

      The Management Console runs under the Local System account (machine account), therefore the SPN must be assigned to the machine account, not to a service account.

      SPN format: rslmc/<management-console-fqdn>

      CMD command: setspn -S rslmc/<management-console-fqdn> <computer-account>

      where:

      • rslmc is the Management Console's service class name.
      • <management-console-fqdn> is the fully qualified domain name of the host running the Management Console.

      • <computer-account> is the computer account name in the Active Directory.

        Tip: Computer account name

        Computer account name is usually the same as the hostname of the machine, unless the machine is renamed after joining the domain.

      Example: Set Management Console SPN

      setspn -S rslmc/resilio-server.corp.example.com resilio-server

    • Primary Storage Agent
      The Primary Storage Agent SPN is required to allow the Agent to impersonate end users when accessing the file server. This allows the Agent to access files on behalf of end users, respecting their permissions and access rights.

      Note

      The Primary Storage Agent runs under the Local System account (machine account), therefore the SPN must be assigned to the machine account, not to a service account.

      SPN format: rsl/<primary-storage-agent-fqdn>

      CMD command: setspn -S rsl/<primary-storage-agent-fqdn> <computer-account>

      where:

      • rsl is the Primary Storage Agent's service class name.
      • <primary-storage-agent-fqdn> is the fully qualified domain name of the host running the Primary Storage Agent.

      • <computer-account> is the computer account name in the Active Directory assigned to the host running the Primary Storage Agent.

        Tip: Computer account name

        Computer account name is usually the same as the hostname of the machine, unless the machine is renamed after joining the domain.

      Example: Set Primary Storage Agent SPN

      setspn -S rsl/resilio-server.corp.example.com resilio-server

  3. Enable delegation for the Primary Storage Agent to allow it to impersonate end users when accessing the file server:

    Using Remote Server Administration Tools

    To enable impersonation using Remote Server Administration Tools:

    1. Install Remote Server Administration Tools for powershell:

      Install-WindowsFeature -Name RSAT-AD-PowerShell

    2. Configure delegation (impersonation):

      $ImpersonatingAccount = Get-ADComputer -Identity resilio-server
Set-ADComputer file-server -PrincipalsAllowedToDelegateToAccount @($ImpersonatingAccount)

      where:

      • resilio-server is the computer account name in the Active Directory assigned to the host running the Primary Storage Agent.
      • file-server is the computer account name in the Active Directory assigned to the file server host.
    Using Active Directory Users and Computers snap-in

    To enable impersonation using Active Directory Users and Computers snap-in:

    1. Open Active Directory Users and Computers snap-in.
    2. Locate the Computer account for the host serving as the Primary Storage device, right-click it and select Properties.

    3. Select the Delegation tab, then select Trust this computer for delegation to specified services only > Use any authentication protocol.

      Important

      Selecting the option to use any authentication protocol is required.

    4. Click Add, then click Users or Computers.

    5. In the opened window, enter the name of the file server host, click Check Names to verify it, then click OK.
    6. In the list of services, select cifs and click OK.

    Sensitive domain accounts

    Delegation is disabled for sensitive accounts: Protected users group members, accounts with Account is sensitive and cannot be delegated option enabled. Delegation must be allowed for end-user accounts.

    Multiple Active Directory domains

    To allow end user Agents to authenticate using accounts from multiple domains, users outside the domain that the Management Console is deployed in, must be in a Global or Universal scope group as external Domain Local scope groups cannot be queried.

    In case of end user Agents deployed in domains in different forests, ensure that the Management Console and the Primary Storage Agent are deployed in a domain that has two-way trust relationships with other domains. For more information, see How trust relationships work for forests in Active Directory.

    Foreign Security Principal objects

    Management Console cannot list Foreign Security Principal (FSP) objects within a group. If you have a group, containing users from other trusted domains as Foreign Security Principal objects, Management Console won't be able to access those users and add them to the Job. You must assign users and groups from each domain separately.

    User accounts properties

    User accounts in Active Directory must have UserPrincipalName (UPN) property assigned. UPN is used for delegation (impersonation) and to link users between OpenID providers (Entra ID, Okta) and Active Directory. Users without UPN assigned cannot participate in Enterprise Hybrid Work Jobs. The presence of the UPN can be verified in user management UI or with PowerShell command:

    Get-ADUser user_a -Properties SID,UserPrincipalName,DistinguishedName

Entra ID/Okta setup for end user authentication

Important: User Agent authentication

You cannot have user Agents using different authentication methods. Once you enable user Agent authentication via Open ID Connect compliant identity provider, all user Agents must authenticate using this method. Agents that previously authenticated using Active Directory will no longer be able to connect to the Management Console, unless they are reconfigured to use the Open ID Connect authentication method.

Entra ID

Note

This guide assumes that Entra is synchronized with the domain where the Management Console and Primary Storage Agent are deployed. This can be either an on-premise domain controller or EDS (Entra Domain Services).

To setup Entra ID for end user Agents authentication:

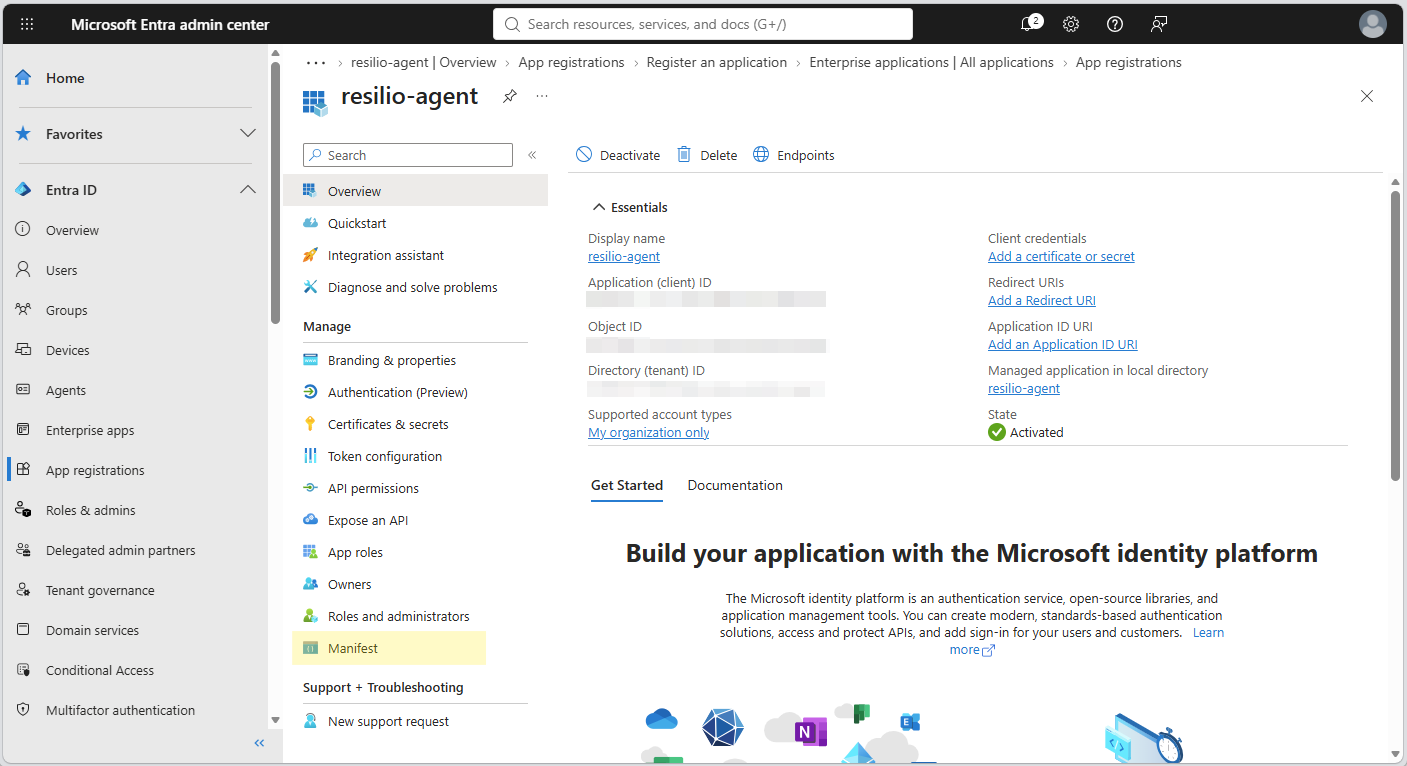

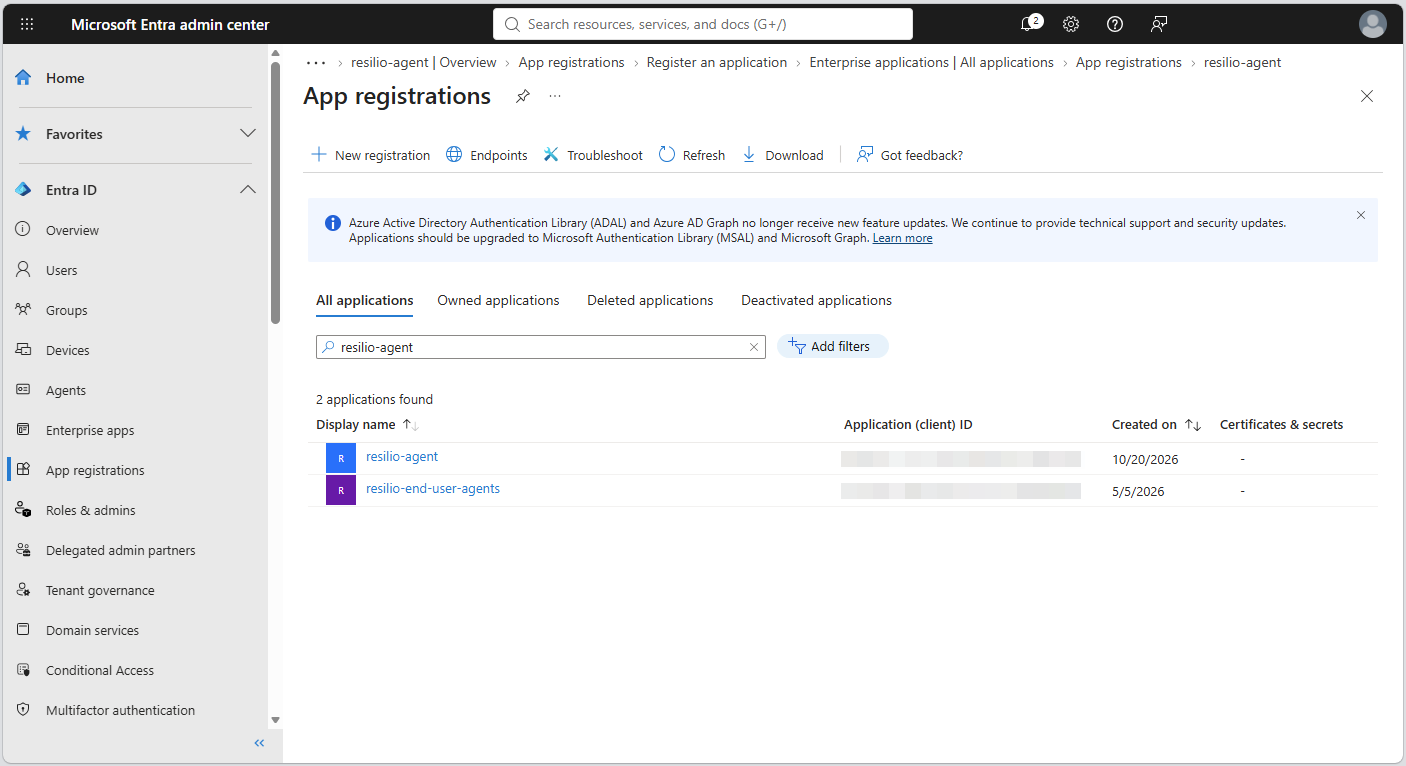

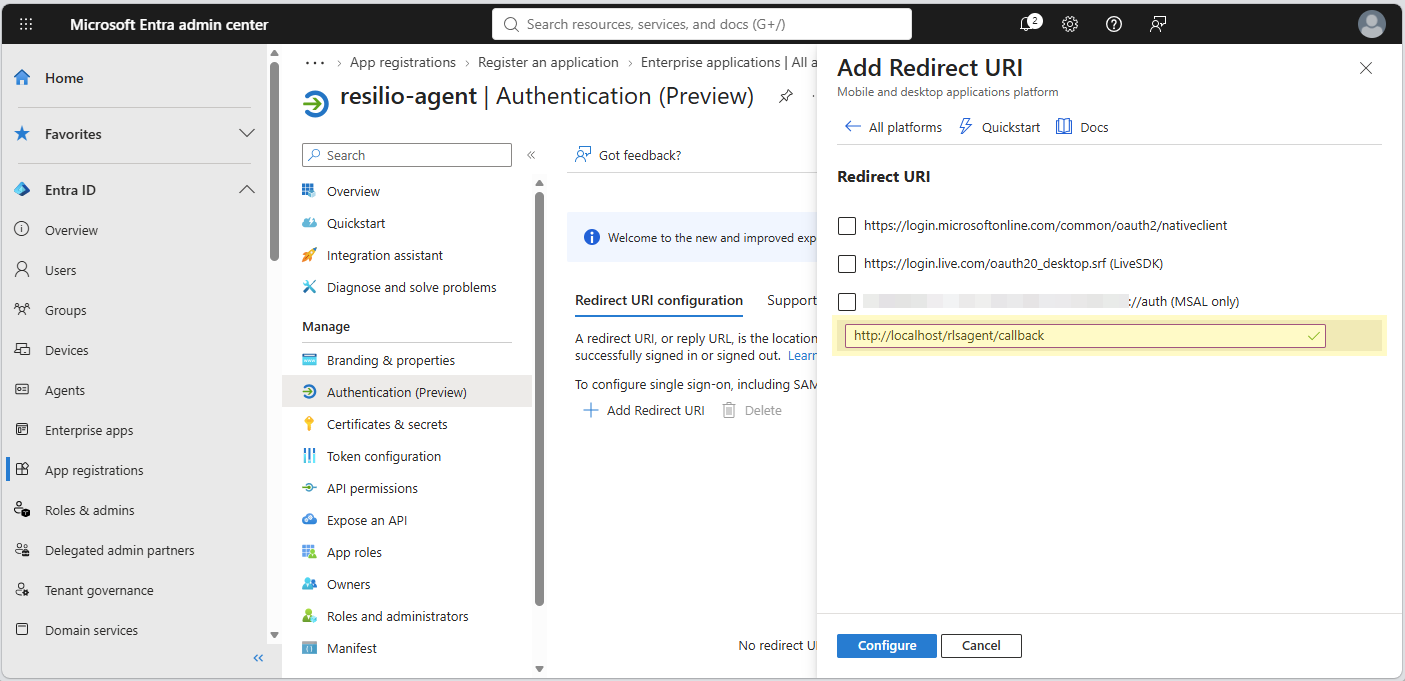

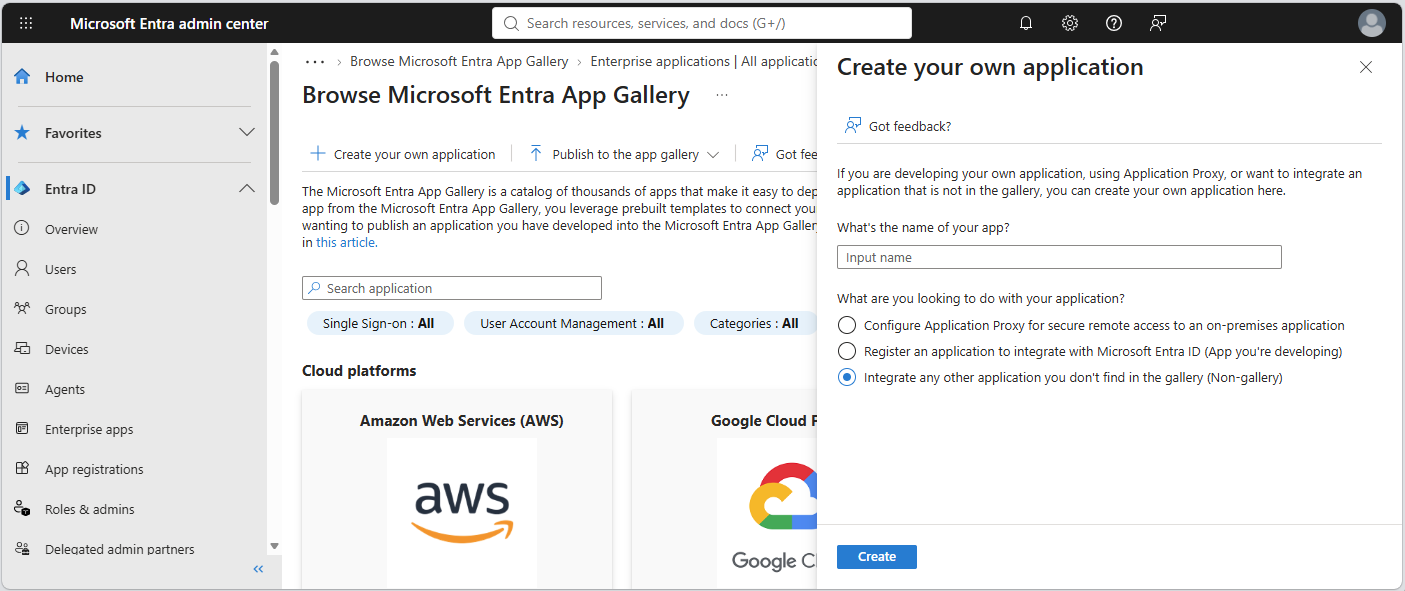

  1. In Microsoft Entra admin center, register an application. For details, see Register an application.

    When registering an application, select Single tenant only supported account type and make sure to provide a Public client/native (mobile & desktop) type redirect URI: http://localhost/rlsagent/callback.

    Entra Id App End User Agents

  2. Add email and upn token claims:

    1. In the registered application, select Token configuration > Add optional claim.

    2. In the opened pane, choose the ID token type, select email and upn claims and click Add.

      Entra Id App End User Agents Token Claims

    3. Select Turn on the Microsoft Graph email, profile permission (required for claims to appear in token) and click Add.

    4. Repeat steps a-b to add Access token type email and upn claims.

  3. Update the access token format in your application's manifest:

    1. In the registered application, select Manifest.

    2. Locate the api section, set the accessTokenAcceptedVersion parameter value to 2 and click Save.

      ...
"api": {
      ...
      "requestedAccessTokenVersion": 2,
      ...
},
...

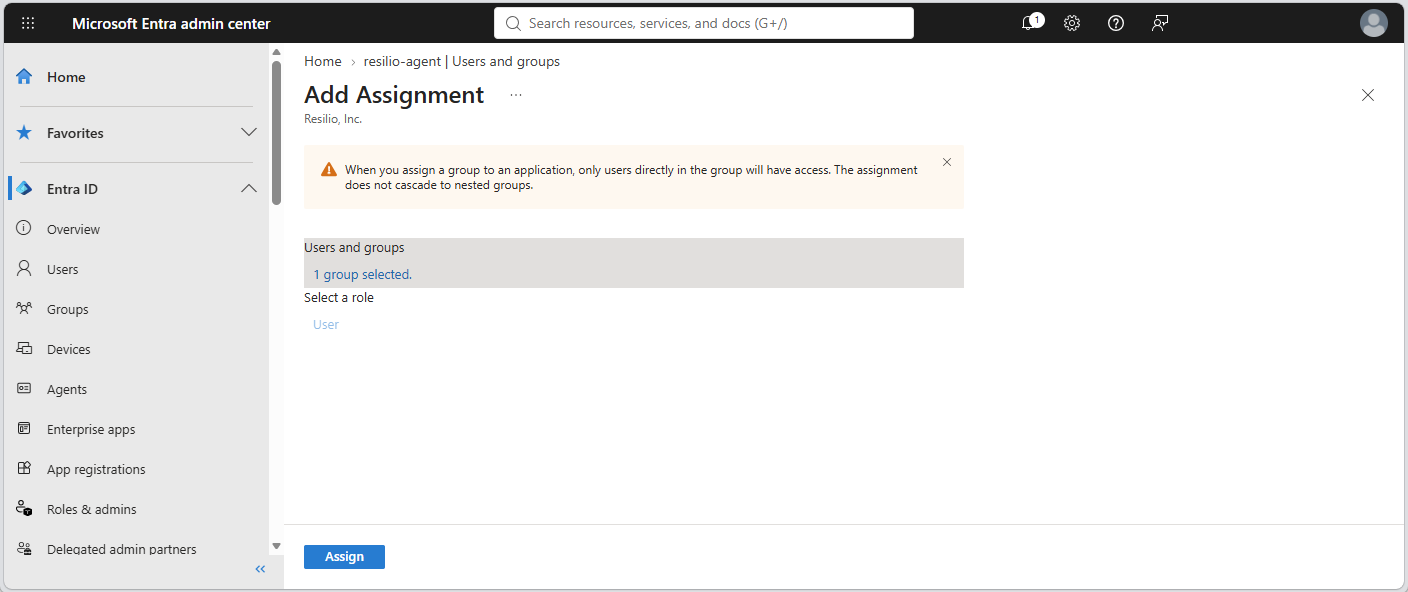

  4. Add users or groups allowed to authenticate their Resilio Agents using this application:

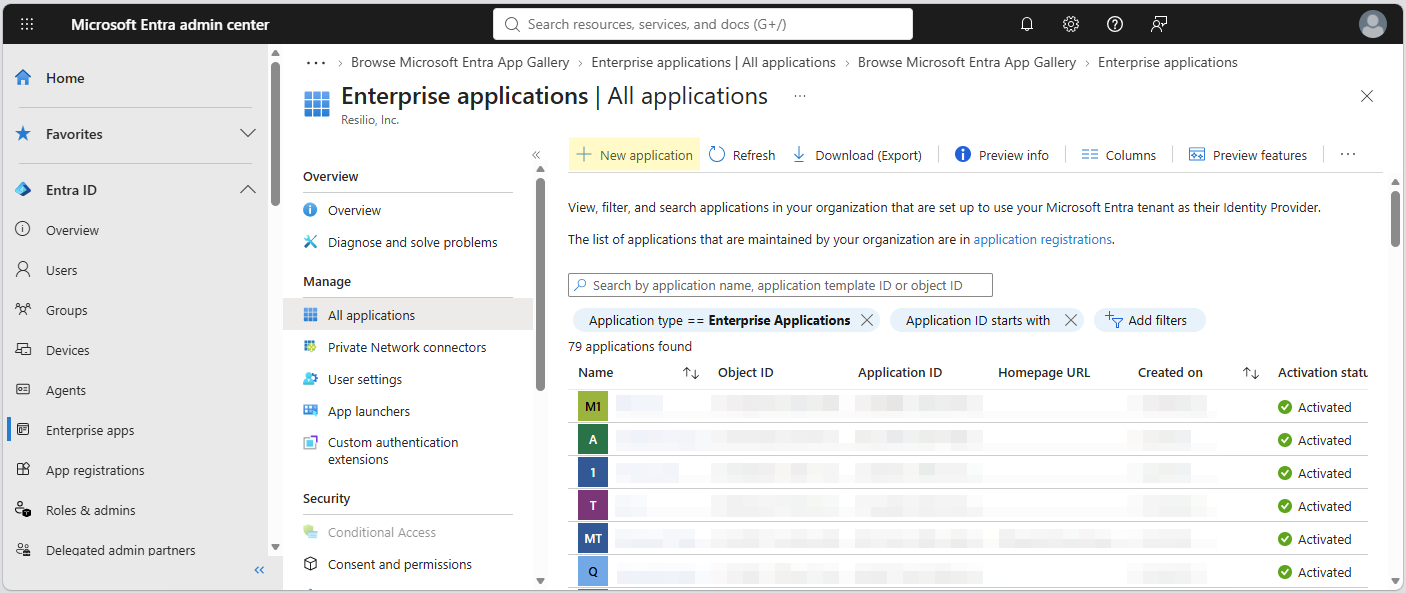

    1. Select Enterprise apps then locate and click your application.

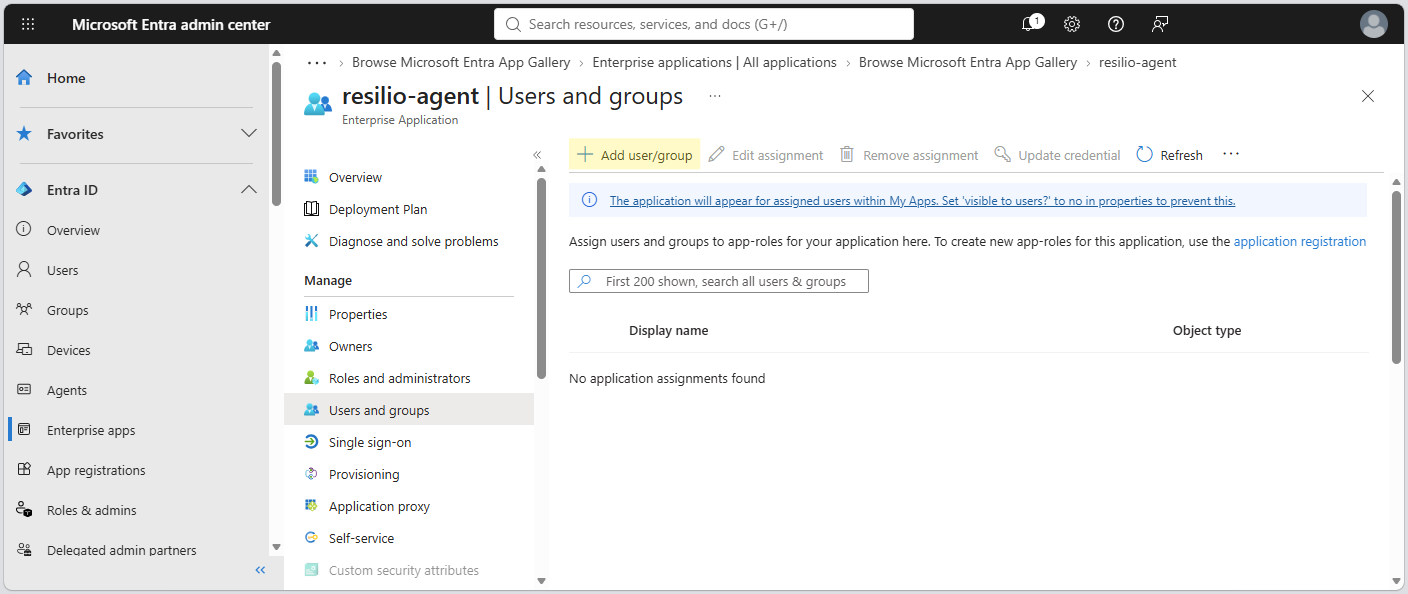

    2. Select Users and groups, then click + Add user/group.

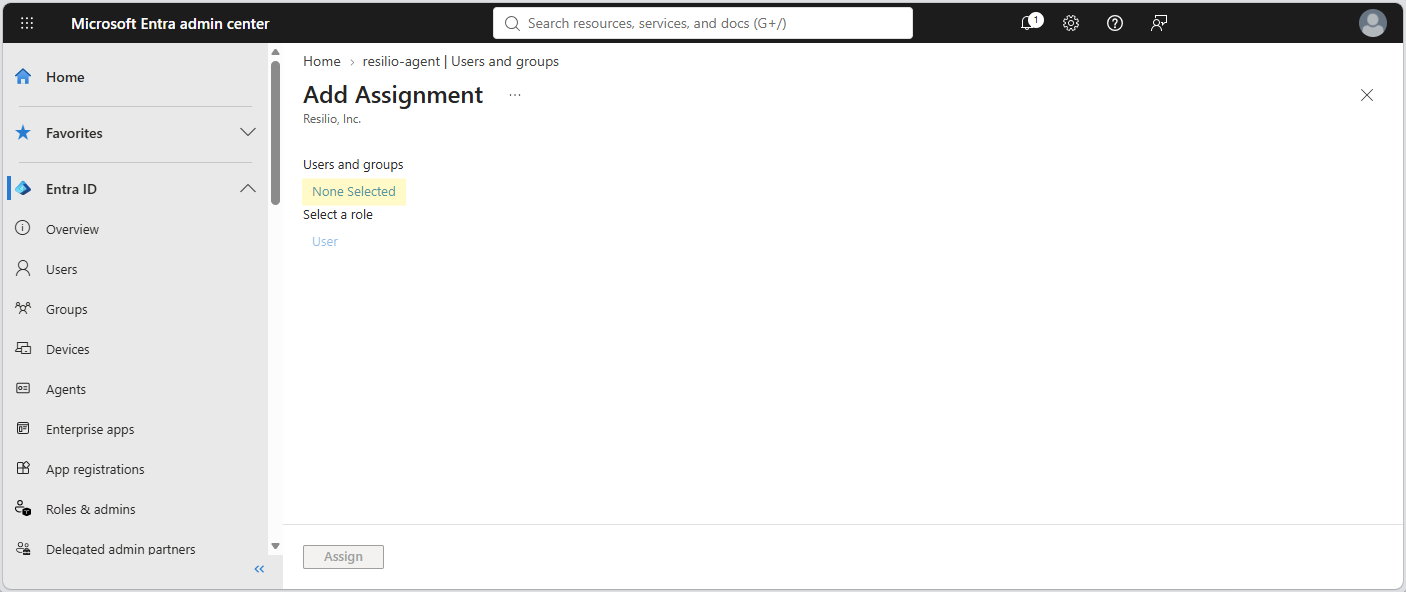

    3. Under Users and groups, click None Selected.
    4. Select users or groups to be added and click Select, then click Assign.

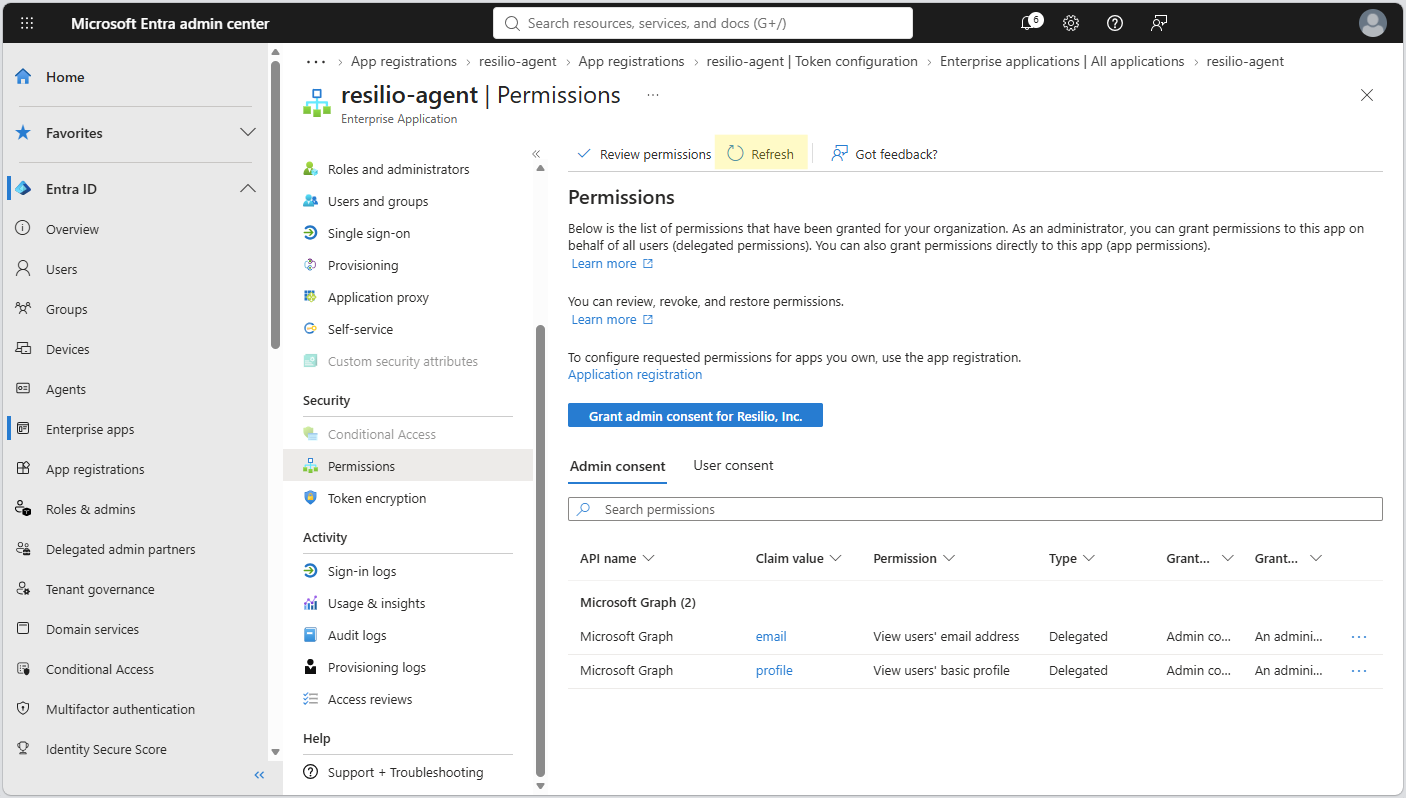

  5. Grant admin consent for your tenant to allow the application to read user's profiles and email addresses.

    1. Select Enterprise apps then locate and click your application.

    2. Under Security, select Permissions, then click Grant admin consent for your tenant to allow the application to read users' profiles and email addresses.

      Entra Id Permissions Admin Consent

  6. Once the Management Console is installed, set up Agent Authentication.

Okta

Note

This guide assumes that Okta is synchronized with Active Directory where the Management Console and Primary storage are deployed, and users and groups are available in Okta. Refer to official Okta documentation.

To setup Okta for end user Agents authentication:

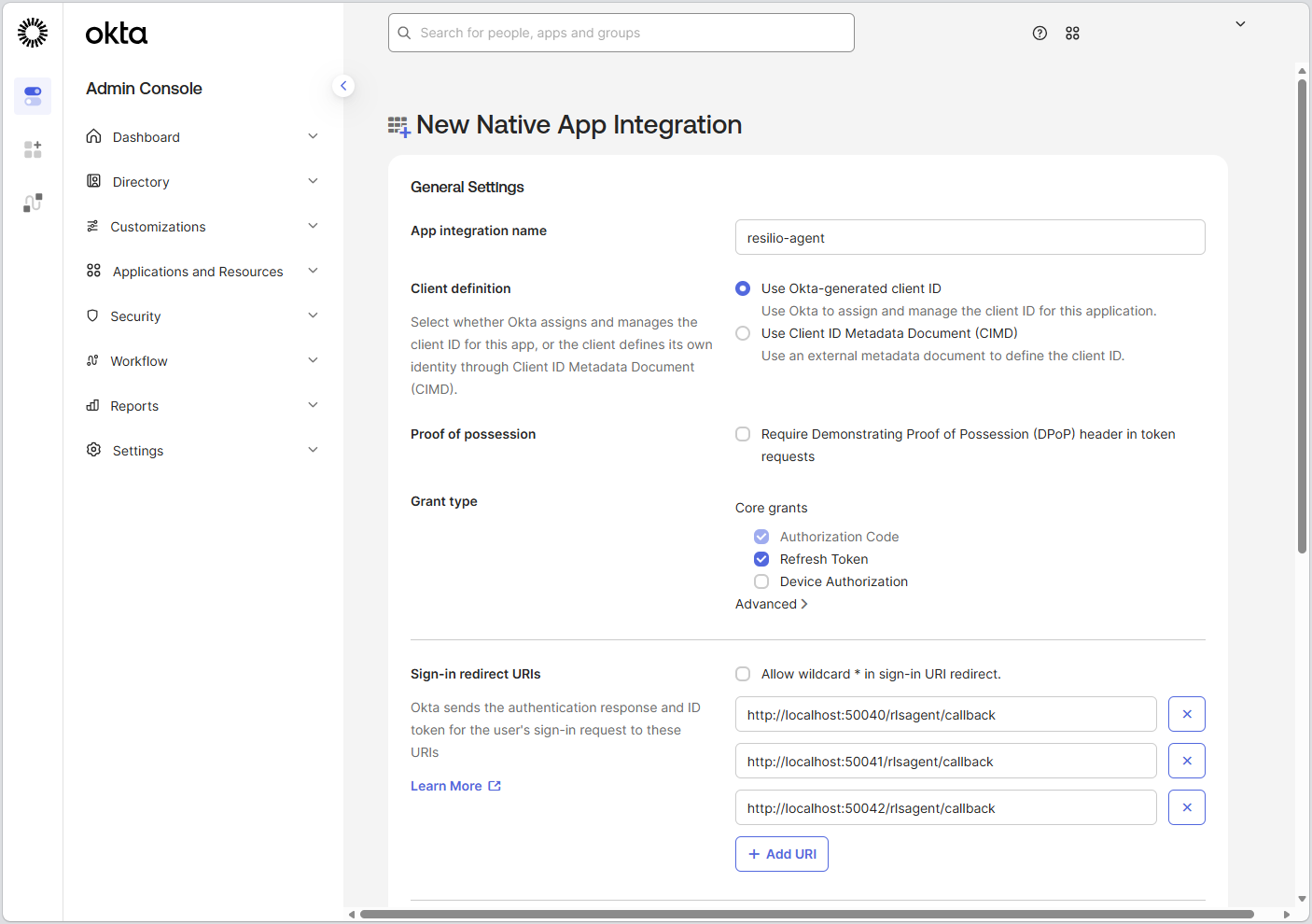

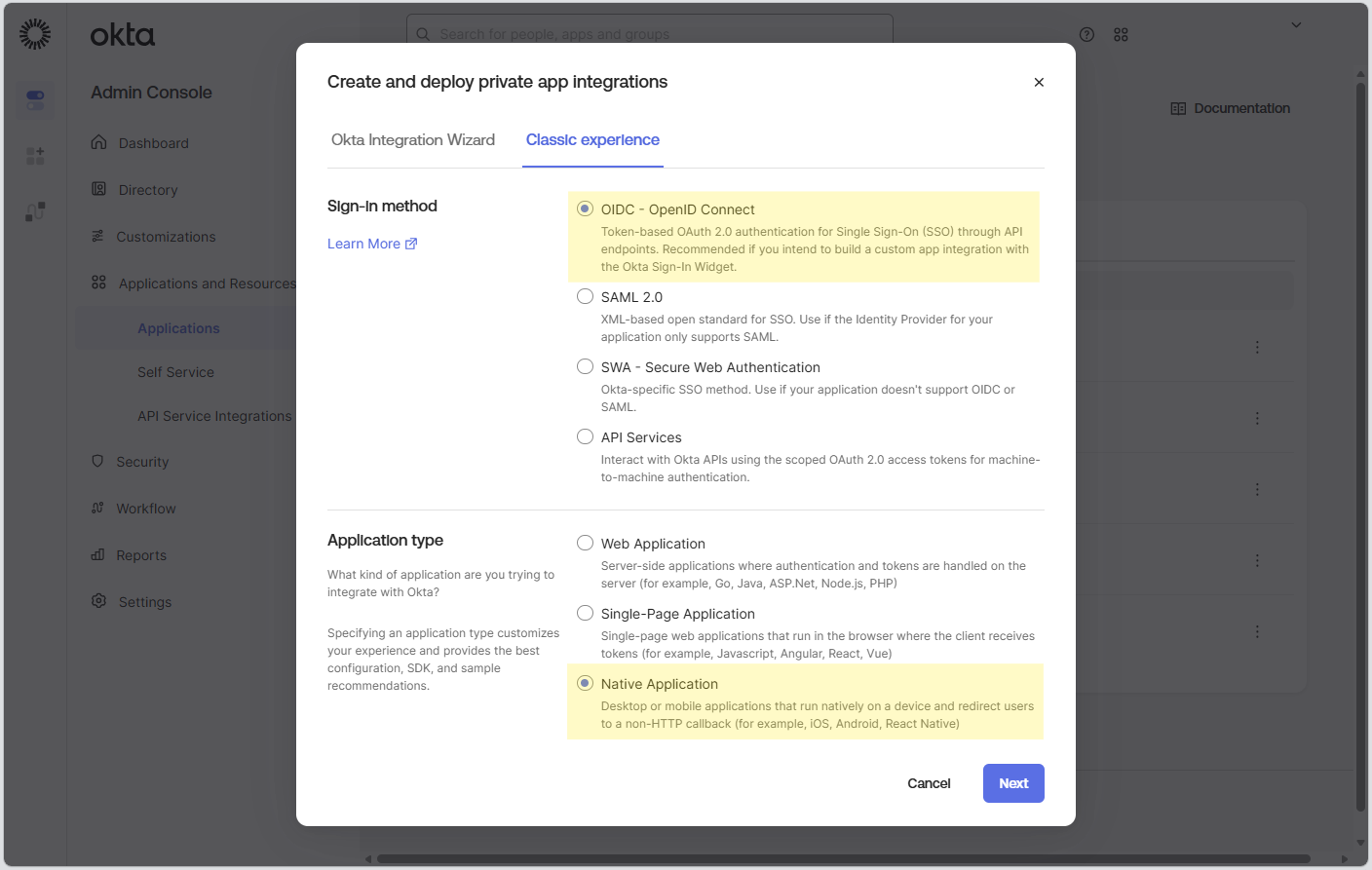

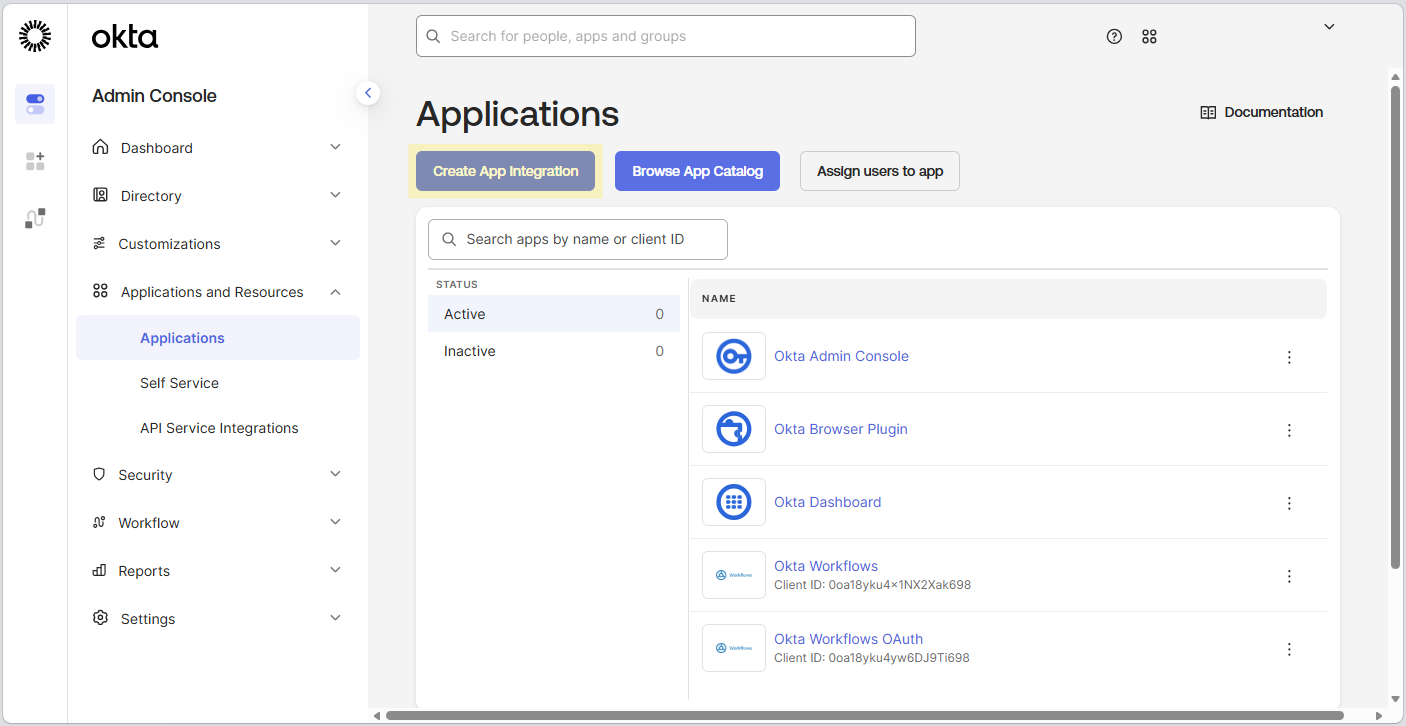

  1. Register an application: choose Native Application application type and provide a redirect URI as follows.

    • http://localhost:50040/rlsagent/callback
    • http://localhost:50041/rlsagent/callback
    • http://localhost:50042/rlsagent/callback

    Okta App

    Important

    Make sure to use the same ports later when setting up Agent Authentication on the Management Console.

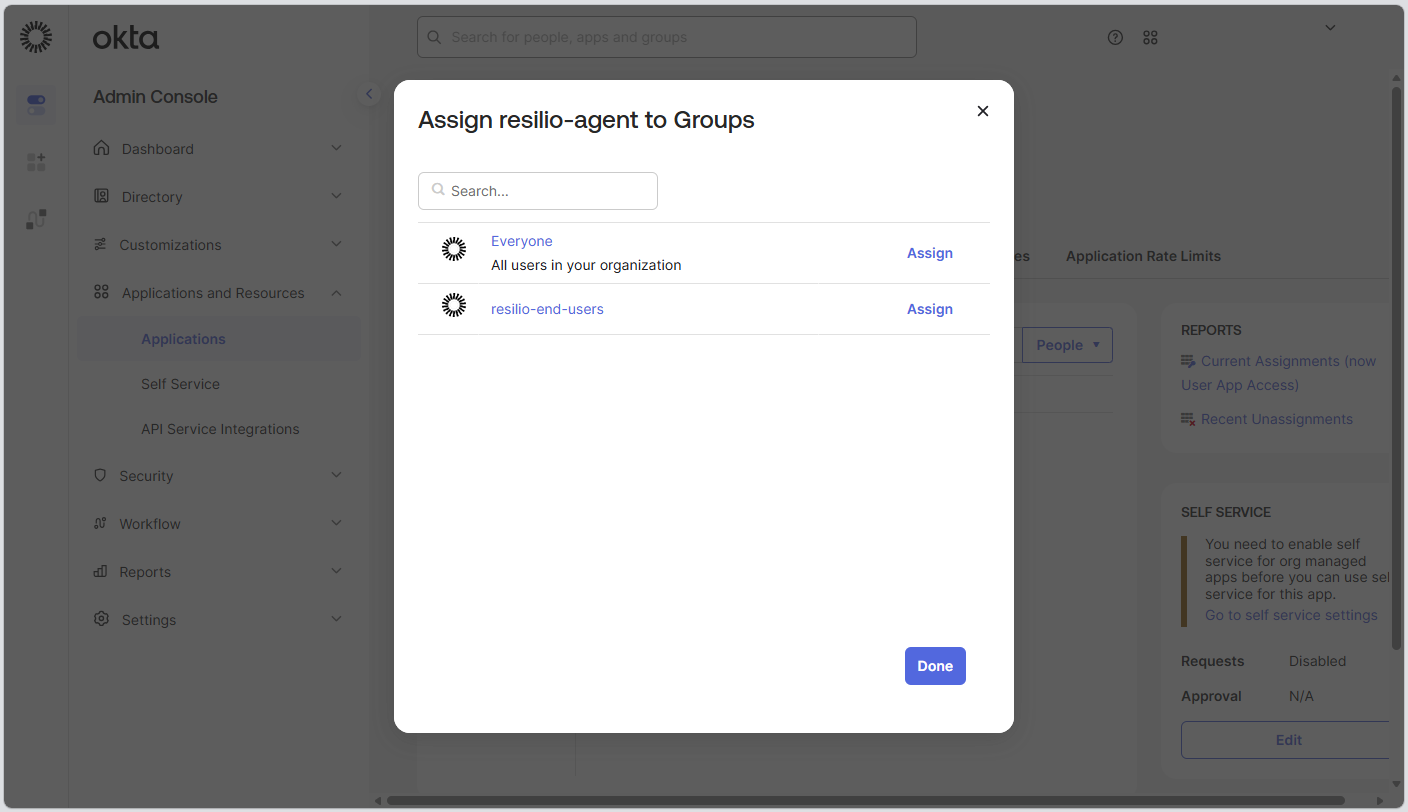

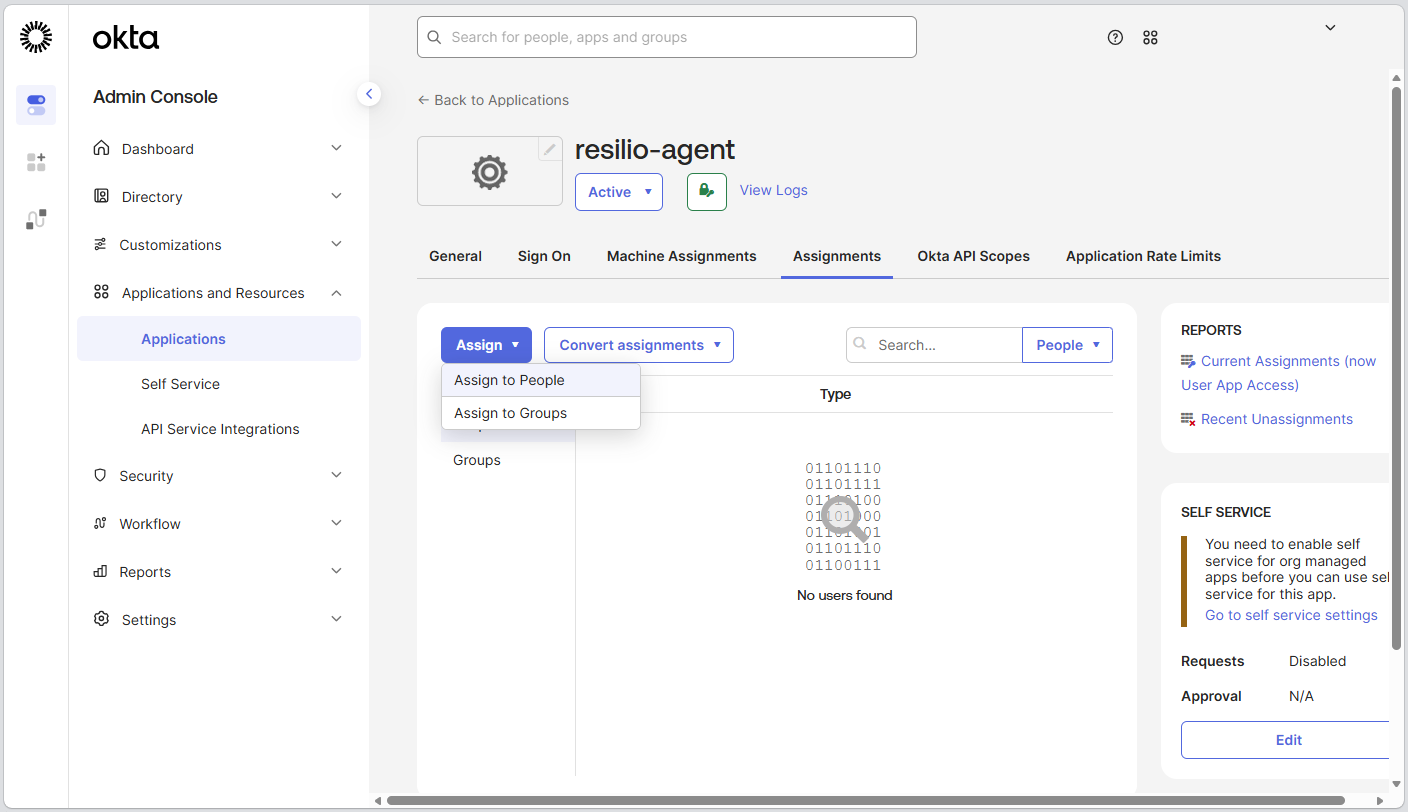

  2. Assign users and groups as needed. Okta users

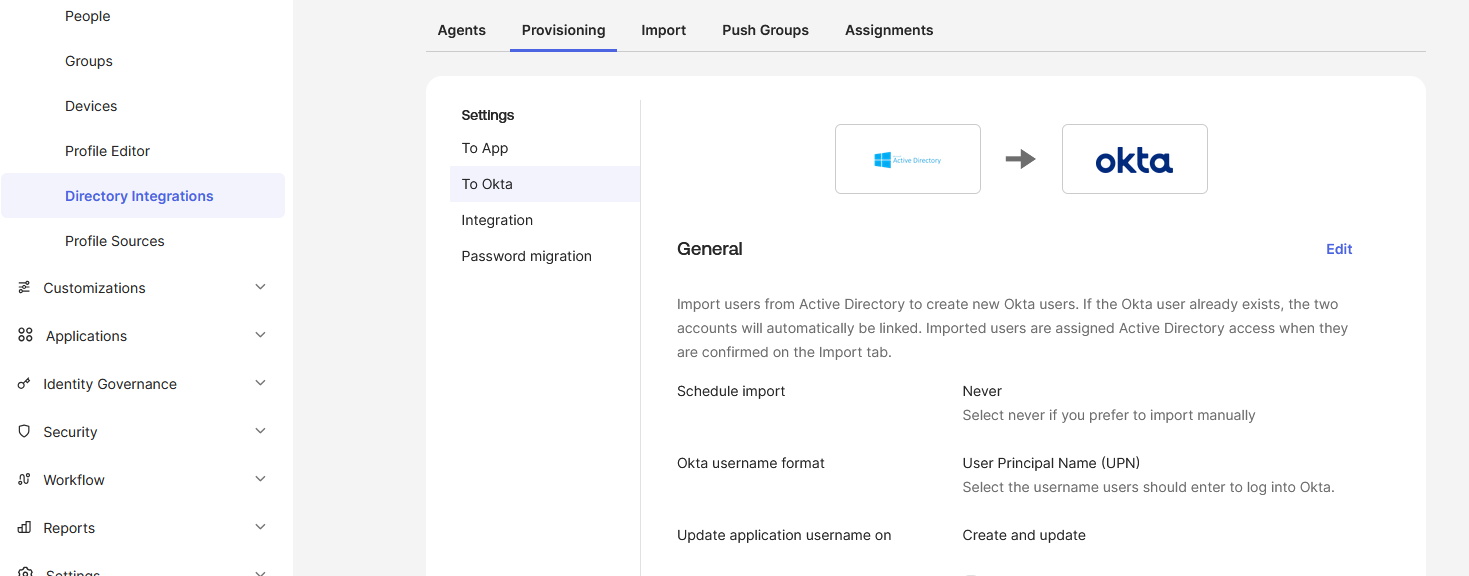

  3. Ensure that the User Principal Name (UPN) is configured.

    Note

    Management Console uses UPN as a key to search for the user in the Active Directory. This could be configured in different ways in Okta depending on integration setup. For details, see okta Docs - Configure Active Directory import and account settings.

    Okta_upn

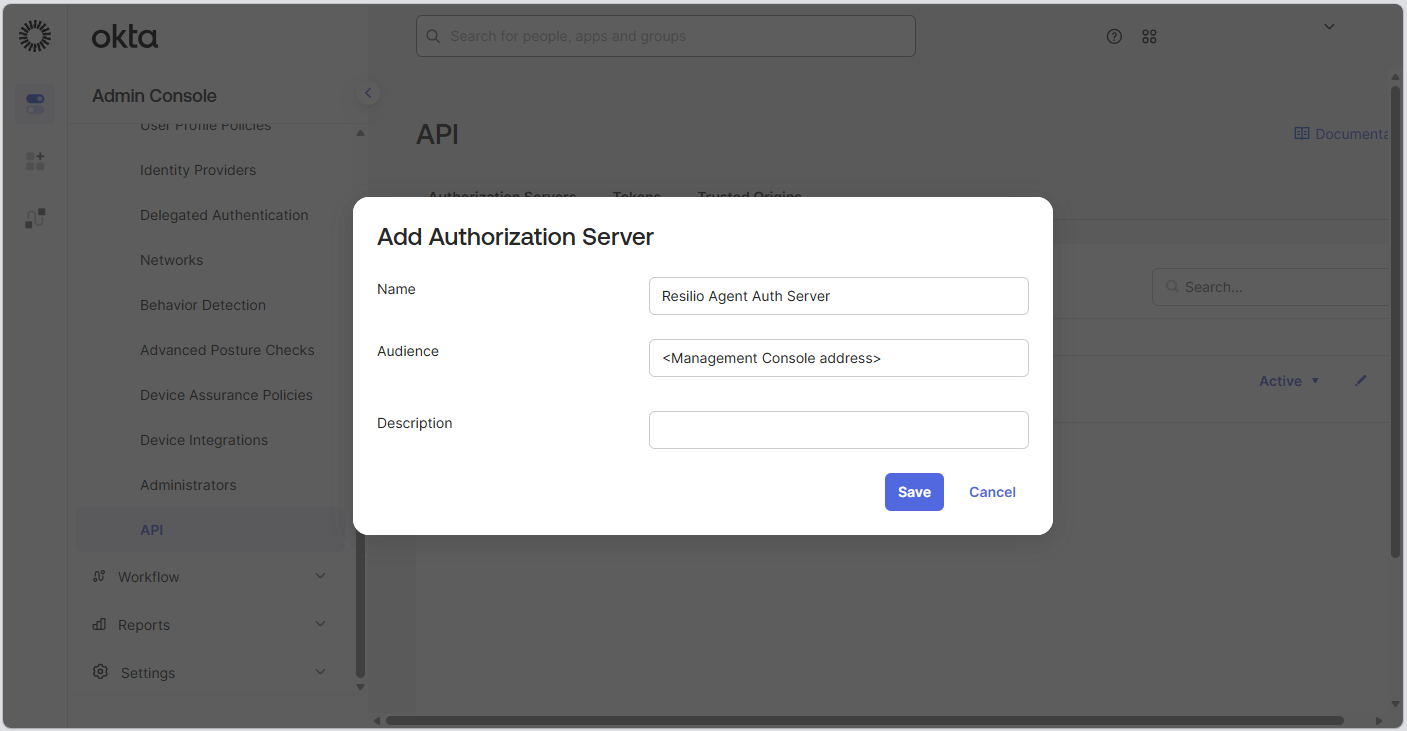

  4. Create application authorization server.
    Select Security > API > Add Authorization Server. Keep the default settings.

    Okta_auth

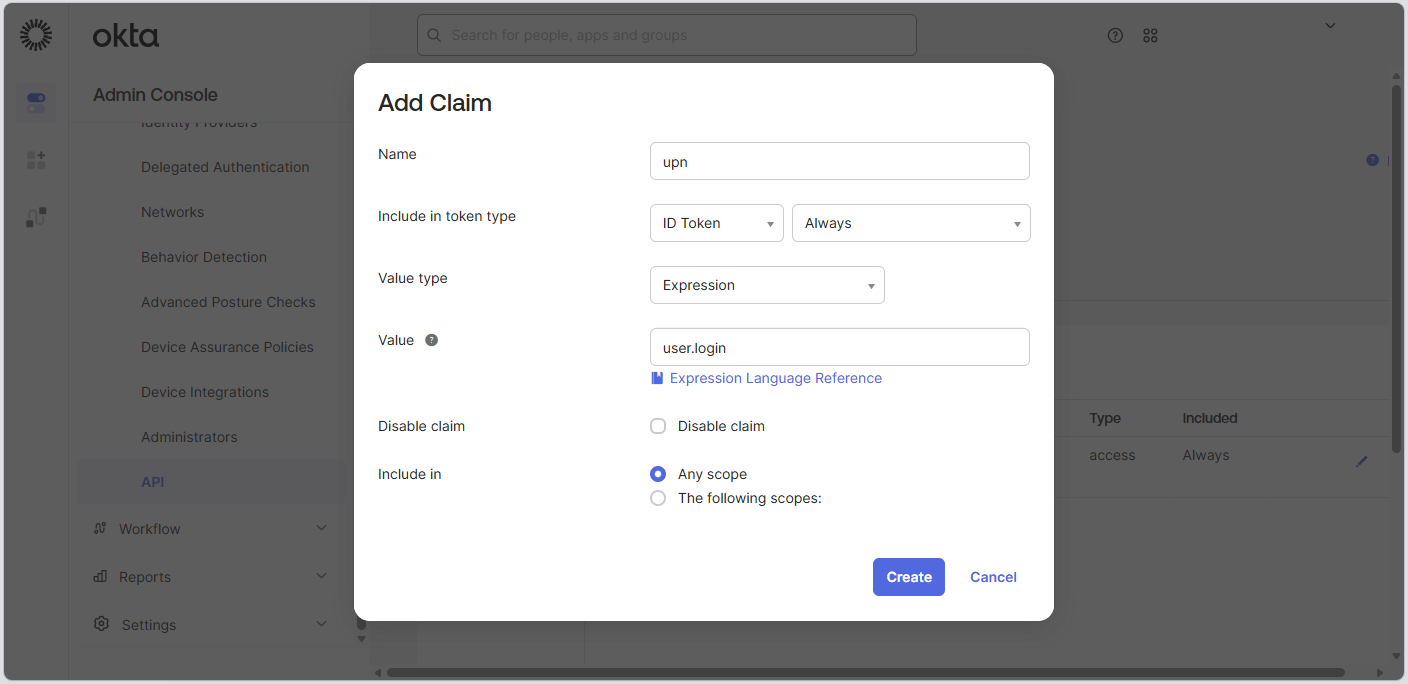

  5. Add the following claim.

    Okta_claim

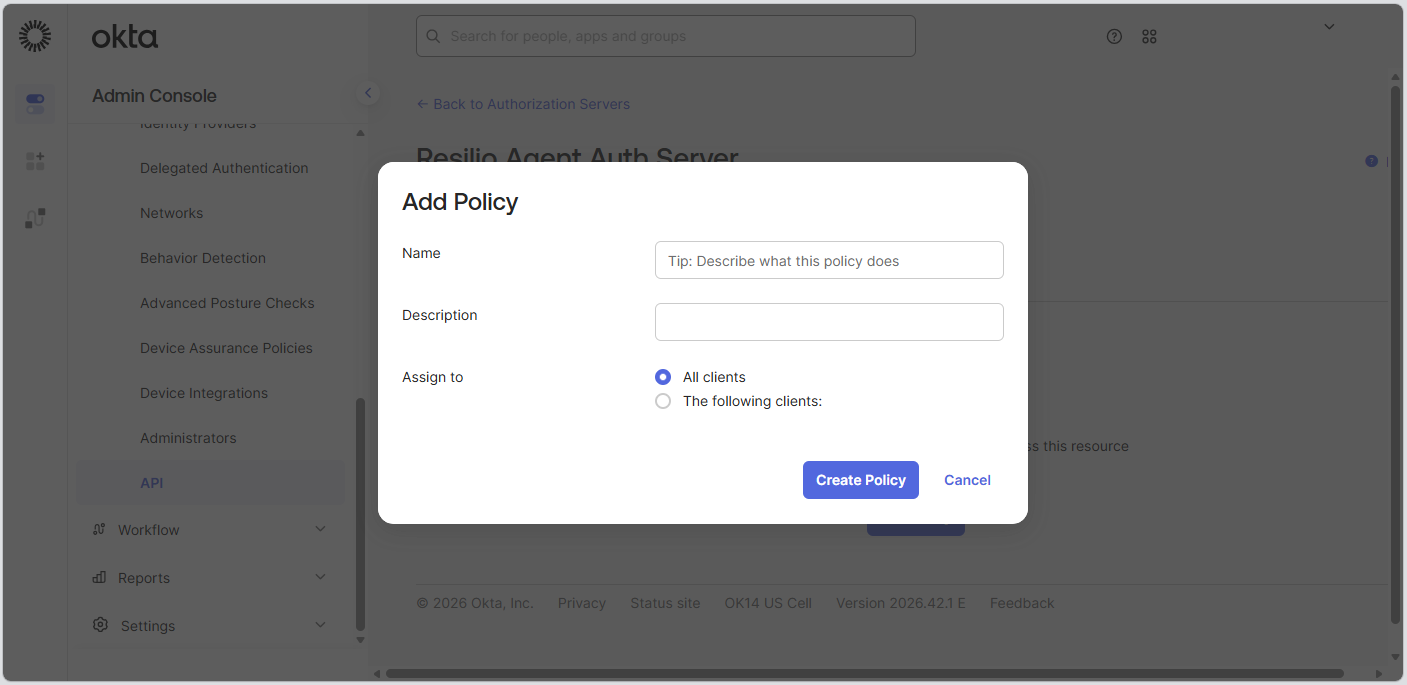

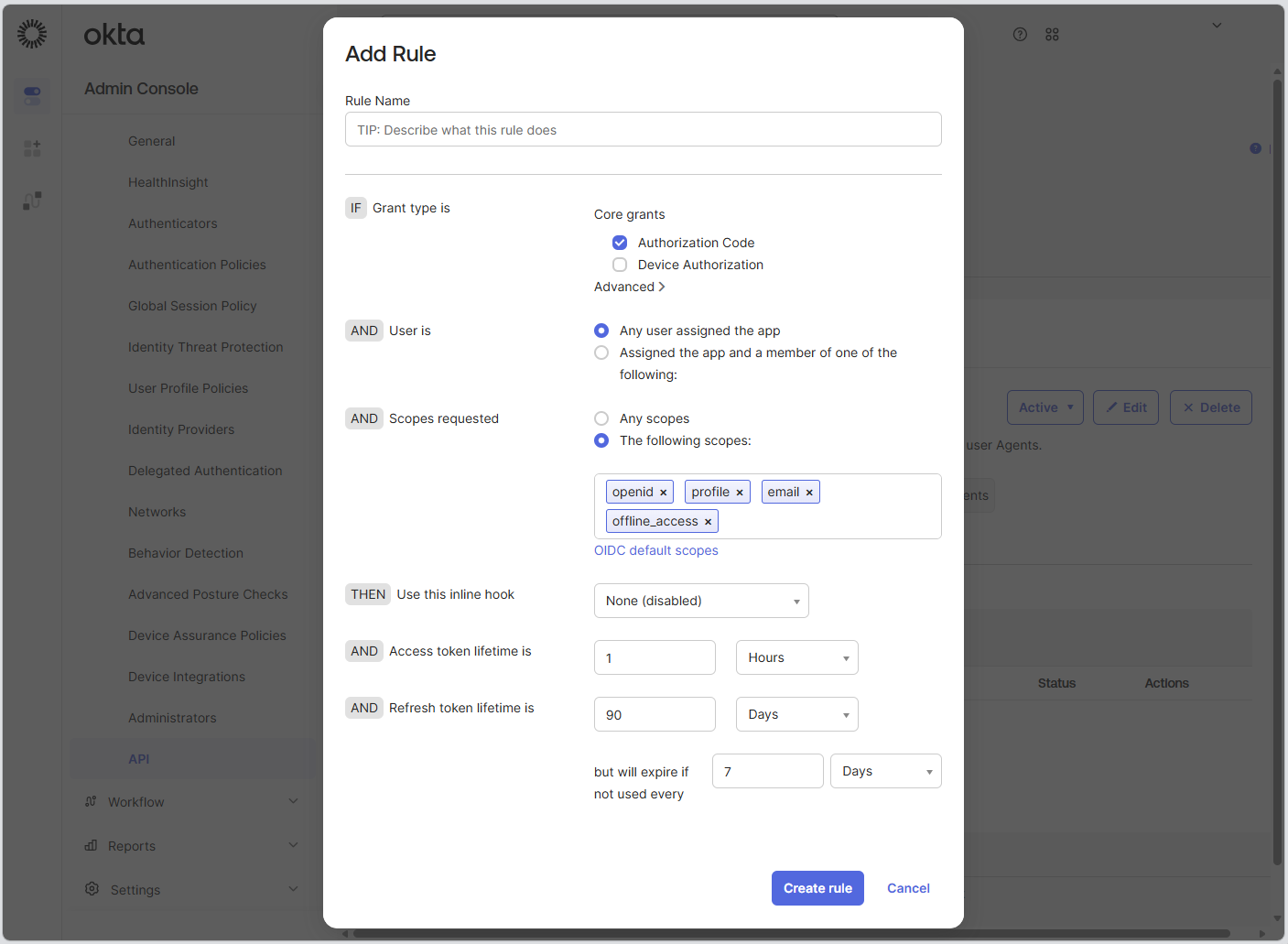

  6. Add a new Access policy and add the rule. Adjust token lifetime to your requirements. Okta policy

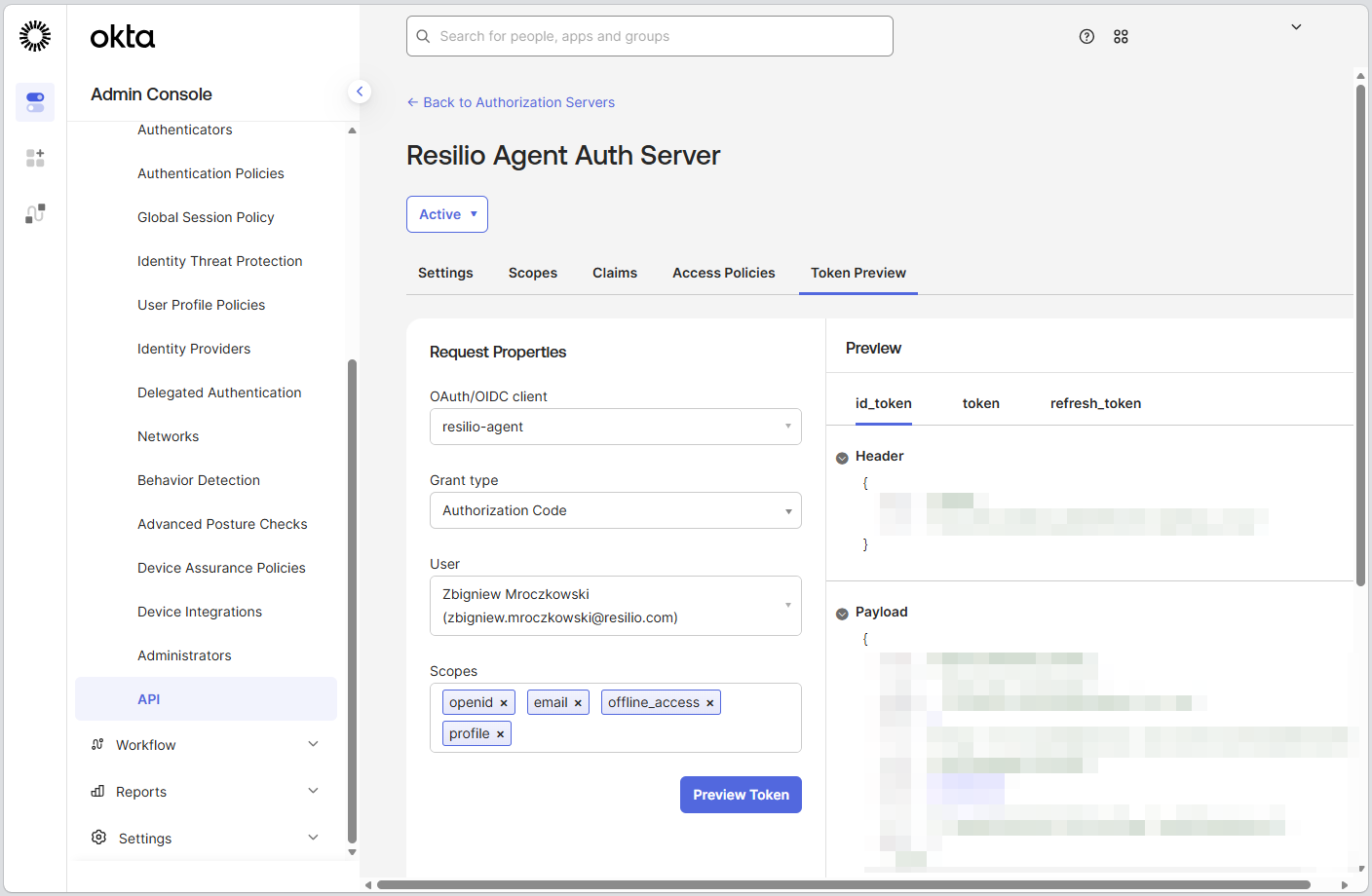

  7. If needed, run the token preview check. Ensure that the UPN is set.

  8. Once the Management Console is installed, set up Agent Authentication flow.

Active Everywhere 5.x requirements.

Operating system

Windows (x64)

  • Windows 8.1 or newer
  • Windows Server 2012 R2 or newer

Linux (x64)

  • kernel 4.18 or newer
  • glibc 2.28 or newer

Ubuntu

  • 16.04 or newer

CentOS

  • glibc 2.28 or newer
How to check if your system meets the requirements

Windows

Open Windows Command Prompt (cmd) and run winver command to verify your Windows version.

Windows Version

Linux

Example output on the screenshot below.

Run this command to check your kernel version:

uname -r

Run this command to check you GLIBC version:

ldd --version

Ubuntu

Run this command in Terminal to locate the path to the active library:

/sbin/ldconfig -p | grep stdc++

Run these commands using the path from before to verify which version of ABI and library is available:

strings /usr/lib/x86_64-linux-gnu/libstdc++.so.6 | grep CXXABI
strings /usr/lib/x86_64-linux-gnu/libstdc++.so.6 | grep LIBCXX

RHEL

Run these commands to verify which version of ABI and library is available:

nm /usr/lib/libstdc++.so.6 | fgrep CXXABI
nm /usr/lib/libstdc++.so.6 | fgrep LIBCXX

Web interface

  • Most internet browsers

Hardware requirements

Deployment size CPU System memory Storage
50 Agents, 10 jobs each Intel Core i5 7600 or similar, 4 cores 6 GB SSD 400 MB/s
100 Agents, 50 jobs each Intel Core i5 7600 or similar, 4 cores 8 GB SSD 400 MB/s
1000 Agents, 300 sync jobs each Intel Core i7 10700 or similar, 8 cores 10 GB NVME 1500 MB/s
10,000 Agents, 750 jobs total Intel Core i7 13700 or similar, 16 cores 32 GB NVME 1500 MB/s

Note

Additional 2 GB or RAM is required to build a files' report in a Distribution or a Storage Tiering job. The RAM is freed once the report is built.

System memory requirements for increased number of workers

General recommendations for the number of workers and the estimated RAM requirements for the Management Console based on the number of connected Agents. For more information, see Increasing Management Console worker threads - Resilio Help Center.

Agents (range)         Workers (total) Main Worker RAM Regular Worker RAM (each) Estimated Total RAM (MC)
500 - 1 000 2 6 GB 1 GB 8 GB
1 000 - 2 000 3 6 GB 1 GB 9 GB
2 000 - 4 000 4 6 GB 1 GB 10 GB
4 000 - 5 000 5 8-10 GB 1-1.5 GB 15.25 GB
5 000 - 7 500 6 12-14 GB ~1.5 GB 22 GB
7 500 - 11 500 7 18-20 GB 1.5-2 GB 31.25 GB
11 500 - 16 000 8 24 GB ~2 GB 40 GB
16 000 - 27 000 9 28 GB 2-2.5 GB 48.25 GB
27 000 - 40 000 10 32 GB 2-3 GB 57 GB
Minimum hardware configuration for 10 Gbps throughput
Component Description
CPU 4-6 cores or more (twice as many if deployed on a Virtual Machine), 3 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above), 10 Gbps minimum memory bandwidth throughput.
Storage 1250 MB/s sustained read/write performance.
Network 10 GbE (for example Intel X520, X540, Mellanox ConnectX series). An external network interface must be connected to a PCIe Gen3 x8 slot or higher.

Storage space requirements

Total storage space required is the sum of space taken by:

  • Job runs database - Taking approximately 4MB per 100 job runs.
  • Backup archives - Taking as much space as the job runs database multiplied by the number of backups. For more information, see Backup And Restore.
  • Management Console logs - Logs rotate as the compressed log file reaches 100 MB. No more than 10 log files are kept (this value can be changed in the Management Console's configuration file).
  • System and file events - Storage space taken up by system and file events depend on the size of your deployment and the activity it generates. The table below provides approximate storage space and system memory usage for different deployment scenarios. By default, events are rotated every 14 days.
Deployment size Storage - all events Storage - file events System memory
50 agents, 10 sync jobs, 1000 files each, updated several times per hour 400 MB per day + errors 5.9 GB 900 MB
200 agents, 5 sync jobs each, 1000 files each job, updated several times per hour 800 MB per day + errors 50 GB 1.2 GB
10 agents, transfer 1 to 9, 100 files and a post_download script, started hourly 60 MB per day + errors 41.3 MB 76 MB
100 agents, transfer 1 to 99, 100 files and a post_download script, started hourly 600 MB per day + errors 395 MB 140 MB
100 agents, transfer 99 to 1, 2000 files and pre-indexing script, 12 runs per day statistically insignificant 2.2 GB 1.26 GB
1000 agents, transfer 999 to 1, 2000 files and pre-indexing script, 12 runs per day statistically insignificant 9.8 GB 2.02 GB
5 agents all RW with peer-2-peer enabled, 1 sync job, 20 million files with 1000 files updated hourly. statistically insignificant 12 GB 1.68 GB
3 agents all RW with peer-2-peer enabled, 1 sync job. 10 million files with 1000 files updated hourly. Enabled NTFS permissions by group. statistically insignificant 10 GB 1.8 GB
2 agents, 1 distribution job, 20 million files transferred in batches of 100k files. statistically insignificant 500 MB 1.75 GB

Operating system

High availability and scale-out cluster deployments

Agents in high availability and scale-out groups must run on the same operating system.

Windows

  • Windows 7 or newer (x64)
  • Windows 10 or newer (ARM)
  • Windows Server 2008 R2 or newer
  • Agent UI: IE11 or newer
  • Additional requirements apply to Transparent Selective Sync (TSS). For more information, see Transparent Selective Sync Windows.

macOS

Linux

  • i386
  • x64
  • ARM64
  • glibc 2.17 and newer

  • fuse 3.17 and newer (applicable to Linux x64 Agents 5.0.4 and newer, running as Caching Gateways in File Caching and Hybrid Work Jobs)

    Tip: Verify fuse version

    To verify which fuse version you have installed, run fusermount -V.

    Note

    For a software package compatible with an older fuse library, contact our support team.

FreeBSD

FreeBSD 11 or newer

Android

Android 4.2 or newer

NAS

  • Synology
    Note: Support for NAS packages with arm-based installers (ARM, ARMhf, ARMel, ARMv7) has been removed in Resilio Active Everywhere 4.0.

  • QNAP

  • WD NAS

Hardware requirements

High availability and scale-out cluster deployments

Agents in high availability and scale-out groups must run on the same hardware architecture.

System memory

Note

When estimating system memory size, make sure to take into account not only the Agent itself but also the operating system and other services running on it. The exact amount will vary depending on the system's workload and configuration.

The system memory used by Resilio Active Everywhere depends on the number of files being handled, with each file entry occupying:

  • 256 bytes of RAM in RAM-optimized jobs (applicable to Resilio Active Everywhere 3.0 and newer)
  • 2 KB of RAM (applicable to Resilio Agent 2.12 and older)
    Example: For 4.5 Million files up to 9 GB of RAM is required.
    Note: RAM requirements double when syncing NTFS or Posix permissions depending on the number ACLs applied per file. Use time window-based file monitor, to limit memory usage.

Note

Resilio Active Everywhere keep records of all deleted entries in the job. Each entry consumes RAM as well accordingly.

Storage space

Total storage space required is the sum of space taken by:

  • Jobs database - Taking up a similar amount as the size the of system memory allocated to the Agent service.
  • Database backups - Created each time the Agent is updated to a new version.
  • Debug logs - Logs are rotated when the log file reaches 1 GB. At that point, the file is compressed. The system retains up to 100 log files.

Below are configuration examples, based on average load.

Based on the number of files

Note

The RAM size in the table below is the memory consumption estimate for the Agent service only.

Deployment size CPU System memory
< 100k files single core, ARM, x86, x64 512 MB
< 1M files 2 core, ARM, x86, x64 Less than 1 GB
> 1M files 4 core, ARM, x86, x64 Approx. 1 GB
~ 50M files 8 core, ARM, x86, x64 Approx. 12 GB
~200M files 16 core, ARM, x86, x64 Approx. 48 GB
Based on the expected transfer speed

Recommended hardware configuration for expected transfer speeds of up to 10 Gbps

Component Description
CPU Xeon E5 2600 v4 series or i7-7000 series, 4 cores or more (twice as many if deployed on a Virtual Machine), 2 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above) 10 Gbps minimum memory bandwidth throughput.
Network An external network interface must be connected to a PCIe 2.0 x4 slot. Link aggregation should be avoided. For NUMA machines with select CPU slots empty, network card PCIe slot should connect to the occupied CPU slot.
Operating system Windows Server 2019 or newer. Note: Non-server Windows versions cannot 10 Gbps performance. Other platforms shall meet hardware requirements above.
Storage Read/write speed over 1.2 GB/s.
Based on expected cloud storage performance
Cloud solution Cloud storage instance type
EC2 agent, <1 Gbit t3.xlarge instance and below
EC2 agent, >1 Gbit m5d.12xlarge instance and greater
Azure agent, <1 Gbit D4s v3 instance and below
Azure agent, >1 Gbit D14 v2 instance and greater
Standard_F32s_v2 for speed up to 9 Gbps (same region to sync files between storages)
Google cloud, >3 Gbit n1- standard-64 and greater (same region to sync files between storages)
Profile Container use case

Note

The RAM size in the table below is the estimated additional memory consumption that must be added to the per file memory consumption mentioned earlier.

Deployment Size CPU System memory Storage
> 2000 Containers 4 core or higher 8 GB ~300 MB/s as shown in the diagnostics section of the console.
3000~8000 Containers 8 core or higher 8 GB 500-700 MB/s as shown in the diagnostics section of the console.
Note: More than 8000 containers are supported but hardware requirements will need to be determined based on size and use case.
One-to-many use case (Distribution and Consolidation jobs)

Note

The RAM size in the table below is the estimated additional memory consumption that must be added to the per file memory consumption mentioned earlier.

Deployment size CPU System memory Storage
100 transfers 4 cores 8 GB 2000+ IOPS
1000 transfers 8 cores or higher 32 GB 10000+ IOPS

Tip

We recommend using the Optimize for low bandwidth preset.

Operating system

Windows (x64)

  • Windows 10 or newer (x64)
  • Windows Server 2008 R2 or newer

Linux (x64)

  • glibc 2.17 or newer

Hardware requirements

Based on the number of files

Deployment Size CPU System memory
< 100,000 files single core 512 MB
< 1,000,000 files 2 core or higher 2 GB
> 1,000,000 files 4 core or higher 4 GB minimum. 2 KB per file with an option to limit memory usage by time window based file monitor

Note

The required system memory size depends on the number of agent connections (a single Agent may install several connections if it uses proxy for several jobs), distance between agents and proxy, and bandwidth between them. A minimum value is 1 Mb per connection. On 10 Gbps networks it may require 300 MB per connection.

Based on the expected transfer speed

Note

With indirect connection through a proxy, speed deterioration of up to 10% may be observed compared to direct tunnel between Agents.

Recommended hardware configuration for expected transfer speeds of up to 5 Gbps:

Component Description
CPU Xeon E5 2600 v4 series or i7-7000 series, 4 cores or more (twice as many if deployed on a Virtual Machine), 2 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above) 10 Gbps minimum memory bandwidth throughput.
Network An external network interface must be connected to a PCIe 2.0 x4 slot.
Link aggregation should be avoided.
For NUMA machines with select CPU slots empty, network card PCIe slot should connect to the occupied CPU slot.
Operating system Windows Server 2019 or newer.
Note: Non-server Windows versions cannot ensure 10 Gbps speeds. Other platforms must meet hardware requirements above.

Operating system

Windows (x64)

  • Windows 10 or newer (x64)
  • Windows Server 2008 R2 or newer

Linux (x64)

  • glibc 2.17 or newer

Hardware requirements

Based on the number of encrypted Agent connections

Deployment Size CPU System memory
10,000 connections 4 core or higher 8 GB minimum

Active Everywhere 4.x requirements.

Operating system

Windows (x64)

  • Windows 8.1 or newer
  • Windows Server 2012 R2 or newer

Linux (x64)

  • kernel 4.18 or newer
  • glibc 2.28 or newer

Ubuntu

  • 16.04 or newer

CentOS

  • glibc 2.28 or newer
How to check if your system meets the requirements

Windows

Open Windows Command Prompt (cmd) and run winver command to verify your Windows version.

Windows Version

Linux

Example output on the screenshot below.

Run this command to check your kernel version:

uname -r

Run this command to check you GLIBC version:

ldd --version

Ubuntu

Run this command in Terminal to locate the path to the active library:

/sbin/ldconfig -p | grep stdc++

Run these commands using the path from before to verify which version of ABI and library is available:

strings /usr/lib/x86_64-linux-gnu/libstdc++.so.6 | grep CXXABI
strings /usr/lib/x86_64-linux-gnu/libstdc++.so.6 | grep LIBCXX

RHEL

Run these commands to verify which version of ABI and library is available:

nm /usr/lib/libstdc++.so.6 | fgrep CXXABI
nm /usr/lib/libstdc++.so.6 | fgrep LIBCXX

Web interface

  • Most internet browsers

Hardware requirements

Deployment size CPU System memory Storage
50 Agents, 10 jobs each Intel Core i5 7600 or similar, 4 cores 6 GB SSD 400 MB/s
100 Agents, 50 jobs each Intel Core i5 7600 or similar, 4 cores 8 GB SSD 400 MB/s
1000 Agents, 300 sync jobs each Intel Core i7 10700 or similar, 8 cores 10 GB NVME 1500 MB/s
10,000 Agents, 750 jobs total Intel Core i7 13700 or similar, 16 cores 32 GB NVME 1500 MB/s

Note

Additional 2 GB or RAM is required to build a files' report in a Distribution or a Storage Tiering job. The RAM is freed once the report is built.

System memory requirements for increased number of workers

General recommendations for the number of workers and the estimated RAM requirements for the Management Console based on the number of connected Agents. For more information, see Increasing Management Console worker threads - Resilio Help Center.

Agents (range)         Workers (total) Main Worker RAM Regular Worker RAM (each) Estimated Total RAM (MC)
500 - 1 000 2 6 GB 1 GB 8 GB
1 000 - 2 000 3 6 GB 1 GB 9 GB
2 000 - 4 000 4 6 GB 1 GB 10 GB
4 000 - 5 000 5 8-10 GB 1-1.5 GB 15.25 GB
5 000 - 7 500 6 12-14 GB ~1.5 GB 22 GB
7 500 - 11 500 7 18-20 GB 1.5-2 GB 31.25 GB
11 500 - 16 000 8 24 GB ~2 GB 40 GB
16 000 - 27 000 9 28 GB 2-2.5 GB 48.25 GB
27 000 - 40 000 10 32 GB 2-3 GB 57 GB
Minimum hardware configuration for 10 Gbps throughput
Component Description
CPU 4-6 cores or more (twice as many if deployed on a Virtual Machine), 3 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above), 10 Gbps minimum memory bandwidth throughput.
Storage 1250 MB/s sustained read/write performance.
Network 10 GbE (for example Intel X520, X540, Mellanox ConnectX series). An external network interface must be connected to a PCIe Gen3 x8 slot or higher.

Storage space requirements

Total storage space required is the sum of space taken by:

  • Job runs database - Taking approximately 4MB per 100 job runs.
  • Backup archives - Taking as much space as the job runs database multiplied by the number of backups. For more information, see Backup And Restore.
  • Management Console logs - Logs rotate as the log file reaches 100 MB when the log file is zipped. No more than 10 log files are kept (this value can be changed in the Management Console Configuration File In Detail).
  • System and file events - Storage space taken up by system and file events depend on the size of your deployment and the activity it generates. The table below provides approximate storage space and system memory usage for different deployment scenarios. By default, events are rotated every 14 days.
Deployment size Storage - all events Storage - file events System memory
50 agents, 10 sync jobs, 1000 files each, updated several times per hour 400 MB per day + errors 5.9 GB 900 MB
200 agents, 5 sync jobs each, 1000 files each job, updated several times per hour 800 MB per day + errors 50 GB 1.2 GB
10 agents, transfer 1 to 9, 100 files and a post_download script, started hourly 60 MB per day + errors 41.3 MB 76 MB
100 agents, transfer 1 to 99, 100 files and a post_download script, started hourly 600 MB per day + errors 395 MB 140 MB
100 agents, transfer 99 to 1, 2000 files and pre-indexing script, 12 runs per day statistically insignificant 2.2 GB 1.26 GB
1000 agents, transfer 999 to 1, 2000 files and pre-indexing script, 12 runs per day statistically insignificant 9.8 GB 2.02 GB
5 agents all RW with peer-2-peer enabled, 1 sync job, 20 million files with 1000 files updated hourly. statistically insignificant 12 GB 1.68 GB
3 agents all RW with peer-2-peer enabled, 1 sync job. 10 million files with 1000 files updated hourly. Enabled NTFS permissions by group. statistically insignificant 10 GB 1.8 GB
2 agents, 1 distribution job, 20 million files transferred in batches of 100k files. statistically insignificant 500 MB 1.75 GB

Operating system

High availability deployments

Agents in high availability deployments must run on the same operating system.

Windows

  • Windows 7 or newer (x64)
  • Windows 10 or newer (ARM) (compatible with Resilio Active Everywhere 4.1 and newer)
  • Windows Server 2008 R2 or newer
  • Agent UI: IE11 or newer (available in Windows 7 SP1 and newer)
  • Additional requirements apply to Transparent Selective Sync (TSS). For more information, see Transparent Selective Sync Windows.

macOS

  • macOS 10.15 (Catalina) or newer for Resilio Agent 4.2.2 and older.
  • macOS 12 (Monterey) or newer for Resilio Agent 4.2.3 and newer.
  • Additional requirements apply to Transparent Selective Sync (TSS). For more information, see Transparent Selective Sync macOS.

Info

  • macOS 15 (Sequoia) requires Resilio Agent 4.0.5 or newer.
  • macOS 26 (Tahoe) requires Resilio Agent 4.2.3 or newer.

Linux

  • i386
  • x64
  • ARM64
  • glibc 2.17 and newer

  • fuse 3.17 and newer (applicable to Linux x64 Agents 4.2.5 and newer running as Caching Gateways in File Caching and Hybrid Work Jobs)

    Tip: Verify fuse version

    To verify which fuse version you have installed, run fusermount -V.

    Note

    For a software package compatible with an older fuse library, contact our support team.

FreeBSD

FreeBSD 11 or newer

Android

Android 4.2 or newer

NAS

  • Synology
    Note: Support for NAS packages with arm-based installers (ARM, ARMhf, ARMel, ARMv7) has been removed in Resilio Active Everywhere 4.0.

  • QNAP

  • WD NAS

Hardware requirements

High availability and scale-out cluster deployments

Agents in high availability and scale-out groups must run on the same hardware architecture.

System memory

Note

When estimating system memory size, make sure to take into account not only the Agent itself but also the operating system and other services running on it. The exact amount will vary depending on the system's workload and configuration.

The system memory used by Resilio Active Everywhere depends on the number of files being handled, with each file entry occupying 256 bytes of RAM in RAM-optimized jobs Note: RAM requirements double when syncing NTFS or Posix permissions depending on the number ACLs applied per file. Use time window-based file monitor, to limit memory usage.

Note

Resilio Active Everywhere keep records of all deleted entries in the job. Each entry consumes RAM as well accordingly.

Storage space

Total storage space required is the sum of space taken by:

  • Jobs database - Taking up a similar amount as the size the of system memory allocated to the Agent service.
  • Database backups - Created each time the Agent is updated to a new version.
  • Debug logs - Logs are rotated when the log file reaches 1 GB. At that point, the file is compressed. The system retains up to 100 log files.

Below are configuration examples, based on average load.

Based on the number of files

Note

The RAM size in the table below is the memory consumption estimate for the Agent service only.

Deployment size CPU System memory
< 100k files single core, ARM, x86, x64 512 MB
< 1M files 2 core, ARM, x86, x64 Less than 1 GB
> 1M files 4 core, ARM, x86, x64 Approx. 1 GB
~ 50M files 8 core, ARM, x86, x64 Approx. 12 GB
~200M files 16 core, ARM, x86, x64 Approx. 48 GB
Based on the expected transfer speed

Recommended hardware configuration for expected transfer speeds of up to 10 Gbps

Component Description
CPU Xeon E5 2600 v4 series or i7-7000 series, 4 cores or more (twice as many if deployed on a Virtual Machine), 2 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above) 10 Gbps minimum memory bandwidth throughput.
Network An external network interface must be connected to a PCIe 2.0 x4 slot. Link aggregation should be avoided. For NUMA machines with select CPU slots empty, network card PCIe slot should connect to the occupied CPU slot.
Operating system Windows Server 2019 or newer. Note: Non-server Windows versions cannot 10 Gbps performance. Other platforms shall meet hardware requirements above.
Storage Read/write speed over 1.2 GB/s.
Based on expected cloud storage performance
Cloud solution Cloud storage instance type
EC2 agent, <1 Gbit t3.xlarge instance and below
EC2 agent, >1 Gbit m5d.12xlarge instance and greater
Azure agent, <1 Gbit D4s v3 instance and below
Azure agent, >1 Gbit D14 v2 instance and greater
Standard_F32s_v2 for speed up to 9 Gbps (same region to sync files between storages)
Google cloud, >3 Gbit n1- standard-64 and greater (same region to sync files between storages)
Profile Container use case

Note

The RAM size in the table below is the estimated additional memory consumption that must be added to the per file memory consumption mentioned earlier.

Deployment Size CPU System memory Storage
> 2000 Containers 4 cores or more 8 GB ~300 MB/s as shown in the diagnostics section of the console.
3000~8000 Containers 8 cores or more 8 GB 500-700 MB/s as shown in the diagnostics section of the console.
Note: More than 8000 containers are supported but hardware requirements will need to be determined based on size and use case.
One-to-many use case (Distribution and Consolidation jobs)

Note

The RAM size in the table below is the estimated additional memory consumption that must be added to the per file memory consumption mentioned earlier.

Deployment size CPU System memory Storage
100 transfers 4 cores 8 GB 2000+ IOPS
1000 transfers 8 cores or more 32 GB 10000+ IOPS

Tip

We recommend using the Optimize for low bandwidth preset.

Operating system

Windows (x64)

  • Windows 10 or newer (x64)
  • Windows Server 2008 R2 or newer

Linux (x64)

  • glibc 2.17 or newer

Hardware requirements

Based on the number of files

Deployment Size CPU System memory
< 100,000 files single core 512 MB
< 1,000,000 files 2 core or higher 2 GB
> 1,000,000 files 4 core or higher 4 GB minimum. 2 KB per file with an option to limit memory usage by time window based file monitor

Note

The required system memory size depends on the number of agent connections (a single Agent may install several connections if it uses proxy for several jobs), distance between agents and proxy, and bandwidth between them. A minimum value is 1 Mb per connection. On 10 Gbps networks it may require 300 MB per connection.

Based on the expected transfer speed

Note

With indirect connection through a proxy, speed deterioration of up to 10% may be observed compared to direct tunnel between Agents.

Recommended hardware configuration for expected transfer speeds of up to 5 Gbps:

Component Description
CPU Xeon E5 2600 v4 series or i7-7000 series, 4 cores or more (twice as many if deployed on a Virtual Machine), 2 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above) 10 Gbps minimum memory bandwidth throughput.
Network An external network interface must be connected to a PCIe 2.0 x4 slot.
Link aggregation should be avoided.
For NUMA machines with select CPU slots empty, network card PCIe slot should connect to the occupied CPU slot.
Operating system Windows Server 2019 or newer.
Note: Non-server Windows versions cannot ensure 10 Gbps speeds. Other platforms must meet hardware requirements above.

Operating system

Windows (x64)

  • Windows 10 or newer (x64)
  • Windows Server 2008 R2 or newer

Linux (x64)

  • glibc 2.17 or newer

Hardware requirements

Based on the number of encrypted Agent connections

Deployment Size CPU System memory
10,000 connections 4 core or higher 8 GB minimum

Active Everywhere 3.x requirements.

Operating system

Windows (x64)

  • Windows 8.1 or newer
  • Windows Server 2012 R2 or newer
    Note: Resilio Active Everywhere 3.6.0 does not support Windows Server 2012.

Linux (x64)

  • kernel 4.18 or newer (applicable to Resilio Active Everywhere 3.6 and newer)
  • glibc 2.28 or newer (applicable to Resilio Active Everywhere 3.6 and newer)
  • kernel 2.6.32 or newer
  • glibc 2.17 or newer
  • GCC 5.1.0: libstdc++.so.6.0.21
  • GCC 5.1.0: GLIBCXX_3.4.21, CXXABI_1.3.9

Ubuntu

16.04 or newer

CentOS

Management Console versions 3.4.x and 3.5.x require CentOS 8.0.1905 or newer. 3.6.x may run on older versions of CentOS.

How to check if your system meets the requirements

Windows

Open Windows Command Prompt (cmd) and run winver command to verify your Windows version.

Windows Version

Linux

Example output on the screenshot below.

Run this command to check your kernel version:

uname -r

Run this command to check you GLIBC version:

ldd --version

Ubuntu

Run this command in Terminal to locate the path to the active library:

/sbin/ldconfig -p | grep stdc++

Run these commands using the path from before to verify which version of ABI and library is available:

strings /usr/lib/x86_64-linux-gnu/libstdc++.so.6 | grep CXXABI
strings /usr/lib/x86_64-linux-gnu/libstdc++.so.6 | grep LIBCXX

RHEL

Run these commands to verify which version of ABI and library is available:

nm /usr/lib/libstdc++.so.6 | fgrep CXXABI
nm /usr/lib/libstdc++.so.6 | fgrep LIBCXX

Web interface

  • Most internet browsers

Hardware requirements

Deployment size CPU System memory Storage
50 Agents, 10 jobs each Intel Core i5 7600 or similar, 4 cores 6 GB SSD 400 MB/s
100 Agents, 50 jobs each Intel Core i5 7600 or similar, 4 cores 8 GB SSD 400 MB/s
1000 Agents, 300 sync jobs each Intel Core i7 10700 or similar, 8 cores 10 GB NVME 1500 MB/s
10,000 Agents, 750 jobs total Intel Core i7 13700 or similar, 16 cores 32 GB NVME 1500 MB/s

Note

Additional 2 GB or RAM is required to build a files' report in a Distribution or a Storage Tiering job. The RAM is freed once the report is built.

System memory requirements for increased number of workers

General recommendations for the number of workers and the estimated RAM requirements for the Management Console based on the number of connected Agents. For more information, see Increasing Management Console worker threads - Resilio Help Center.

Agents (range)         Workers (total) Main Worker RAM Regular Worker RAM (each) Estimated Total RAM (MC)
500 - 1 000 2 6 GB 1 GB 8 GB
1 000 - 2 000 3 6 GB 1 GB 9 GB
2 000 - 4 000 4 6 GB 1 GB 10 GB
4 000 - 5 000 5 8-10 GB 1-1.5 GB 15.25 GB
5 000 - 7 500 6 12-14 GB ~1.5 GB 22 GB
7 500 - 11 500 7 18-20 GB 1.5-2 GB 31.25 GB
11 500 - 16 000 8 24 GB ~2 GB 40 GB
16 000 - 27 000 9 28 GB 2-2.5 GB 48.25 GB
27 000 - 40 000 10 32 GB 2-3 GB 57 GB
Minimum hardware configuration for 10 Gbps throughput
Component Description
CPU 4-6 cores or more (twice as many if deployed on a Virtual Machine), 3 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above), 10 Gbps minimum memory bandwidth throughput.
Storage 1250 MB/s sustained read/write performance.
Network 10 GbE (for example Intel X520, X540, Mellanox ConnectX series). An external network interface must be connected to a PCIe Gen3 x8 slot or higher.

Storage space requirements

Total storage space required is the sum of space taken by:

  • Job runs database - Taking approximately 4MB per 100 job runs.
  • Backup archives - Taking as much space as the job runs database multiplied by the number of backups. For more information, see Backup And Restore.
  • Management Console logs - Logs rotate as the log file reaches 100 MB when the log file is zipped. No more than 10 log files are kept (this value can be changed in the Management Console's configuration file).
  • System and file events - Storage space taken up by system and file events depend on the size of your deployment and the activity it generates.

The table below provides approximate storage space and system memory usage for different deployment scenarios. By default, events are rotated every 14 days.

Deployment size Storage - all events Storage - file events System memory
50 agents, 10 sync jobs, 1000 files each, updated several times per hour 400 MB per day + errors 5.9 GB 900 MB
200 agents, 5 sync jobs each, 1000 files each job, updated several times per hour 800 MB per day + errors 50 GB 1.2 GB
10 agents, transfer 1 to 9, 100 files and a post_download script, started hourly 60 MB per day + errors 41.3 MB 76 MB
100 agents, transfer 1 to 99, 100 files and a post_download script, started hourly 600 MB per day + errors 395 MB 140 MB
100 agents, transfer 99 to 1, 2000 files and pre-indexing script, 12 runs per day statistically insignificant 2.2 GB 1.26 GB
1000 agents, transfer 999 to 1, 2000 files and pre-indexing script, 12 runs per day statistically insignificant 9.8 GB 2.02 GB
5 agents all RW with peer-2-peer enabled, 1 sync job, 20 million files with 1000 files updated hourly. statistically insignificant 12 GB 1.68 GB
3 agents all RW with peer-2-peer enabled, 1 sync job. 10 million files with 1000 files updated hourly. Enabled NTFS permissions by group. statistically insignificant 10 GB 1.8 GB
2 agents, 1 distribution job, 20 million files transferred in batches of 100k files. statistically insignificant 500 MB 1.75 GB

Operating system

Windows

  • Windows 7 or newer (x64)
  • Windows 7 or newer (x86) (compatible with Resilio Active Everywhere 3.7 and older)
  • Windows Server 2008 R2 or newer
  • Agent UI: IE11 or newer (available in Windows 7 SP1 and newer)
  • Additional requirements apply to Transparent Selective Sync (TSS). For more information, see Transparent Selective Sync Windows.

macOS

  • macOS 10.15 (Catalina) or newer
    Note: macOS 13 (Ventura) requires Resilio Active Everywhere 3.4.1 or newer.

  • Additional requirements apply to Transparent Selective Sync (TSS). For more information, see Transparent Selective Sync macOS.

Linux

  • i386
  • x64
  • ARM64, ARM, ARMhf, ARMel, ARMv7, ARMv5 (ARMv5 support available in Resilio Active Everywhere 3.7 and older)
  • glibc 2.6 or newer (applicable to Resilio Active Everywhere 3.8 and newer)
  • glibc 2.3 or newer (applicable to Resilio Active Everywhere 3.7 and older)

FreeBSD

  • FreeBSD 11 or newer

Android

  • Android 4.2 or newer

NAS

  • Synology
    Note: Synology 88f6281 package architecture had been deprecated in Resilio Active Everywhere 3.8.

  • QNAP

  • WD NAS
  • Drobo

System memory

Note

When estimating system memory size, make sure to take into account not only the Agent itself but also the operating system and other services running on it. The exact amount will vary depending on the system's workload and configuration.

The system memory used by Resilio Active Everywhere depends on the number of files being handled, with each file entry occupying:

  • 256 bytes of RAM in RAM-optimized jobs (applicable to Resilio Active Everywhere 3.0 and newer)
  • 2 KB of RAM (applicable to Resilio Agent 2.12 and older)
    Example: For 4.5 Million files up to 9 GB of RAM is required.
    Note: RAM requirements double when syncing NTFS or Posix permissions depending on the number ACLs applied per file. Use time window-based file monitor, to limit memory usage.

Note

Resilio Active Everywhere keep records of all deleted entries in the job. Each entry consumes RAM as well accordingly.

Storage space

Total storage space required is the sum of space taken by:

  • Jobs database - Taking up a similar amount as the size the of system memory allocated to the Agent service.
  • Database backups - Created each time the Agent is updated to a new version.
  • Debug logs - Logs are rotated when the log file reaches 1 GB. At that point, the file is compressed. The system retains up to 100 log files.

Below are configuration examples, based on average load.

Based on the number of files

Note

The RAM size in the table below is the memory consumption estimate for the Agent service only.

Deployment size CPU System memory
< 100k files single core, ARM, x86, x64 512 MB
< 1M files 2 core, ARM, x86, x64 Less than 1 GB
> 1M files 4 core, ARM, x86, x64 Approx. 1 GB
~ 50M files 8 core, ARM, x86, x64 Approx. 12 GB
~200M files 16 core, ARM, x86, x64 Approx. 48 GB
Based on the expected transfer speed

Recommended hardware configuration for expected transfer speeds of up to 10 Gbps

Component Description
CPU Xeon E5 2600 v4 series or i7-7000 series, 4 cores or more (twice as many if deployed on a Virtual Machine), 2 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above) 10 Gbps minimum memory bandwidth throughput.
Network An external network interface must be connected to a PCIe 2.0 x4 slot. Link aggregation should be avoided. For NUMA machines with select CPU slots empty, network card PCIe slot should connect to the occupied CPU slot.
Operating system Windows Server 2019 or newer. Note: Non-server Windows versions cannot 10 Gbps performance. Other platforms shall meet hardware requirements above.
Storage Read/write speed over 1.2 GB/s.
Based on expected cloud storage performance
Cloud solution Cloud storage instance type
EC2 agent, <1 Gbit t3.xlarge instance and below
EC2 agent, >1 Gbit m5d.12xlarge instance and greater
Azure agent, <1 Gbit D4s v3 instance and below
Azure agent, >1 Gbit D14 v2 instance and greater
Standard_F32s_v2 for speed up to 9 Gbps (same region to sync files between storages)
Google cloud, >3 Gbit n1- standard-64 and greater (same region to sync files between storages)
Profile Container use case

Note

The RAM size in the table below is the estimated additional memory consumption that must be added to the per file memory consumption mentioned earlier.

Deployment Size CPU System memory Storage
> 2000 Containers 4 core or higher 8 GB ~300 MB/s as shown in the diagnostics section of the console.
3000~8000 Containers 8 core or higher 8 GB 500-700 MB/s as shown in the diagnostics section of the console.
Note: More than 8000 containers are supported but hardware requirements will need to be determined based on size and use case.
One-to-many use case (Distribution and Consolidation jobs)

Note

The RAM size in the table below is the estimated additional memory consumption that must be added to the per file memory consumption mentioned earlier.

Deployment size CPU System memory Storage
100 transfers 4 cores 8 GB 2000+ IOPS
1000 transfers 8 cores or higher 32 GB 10000+ IOPS

Tip

We recommend using the Optimize for low bandwidth preset.

Operating system

Windows (x64)

  • Windows 10 or newer (x64)
  • Windows Server 2008 R2 or newer

Linux (x64)

  • glibc 2.17 or newer

Hardware requirements

Based on the number of files

Deployment Size CPU System memory
< 100,000 files single core 512 MB
< 1,000,000 files 2 core or higher 2 GB
> 1,000,000 files 4 core or higher 4 GB minimum. 2 KB per file with an option to limit memory usage by time window based file monitor

Note

The required system memory size depends on the number of agent connections (a single Agent may install several connections if it uses proxy for several jobs), distance between agents and proxy, and bandwidth between them. A minimum value is 1 Mb per connection. On 10 Gbps networks it may require 300 MB per connection.

Based on the expected transfer speed

Note

With indirect connection through a proxy, speed deterioration of up to 10% may be observed compared to direct tunnel between Agents.

Recommended hardware configuration for expected transfer speeds of up to 5 Gbps:

Component Description
CPU Xeon E5 2600 v4 series or i7-7000 series, 4 cores or more (twice as many if deployed on a Virtual Machine), 2 GHz minimum base frequency.
System memory 16 GB or more (in addition to files-based requirements listed above) 10 Gbps minimum memory bandwidth throughput.
Network An external network interface must be connected to a PCIe 2.0 x4 slot.
Link aggregation should be avoided.
For NUMA machines with select CPU slots empty, network card PCIe slot should connect to the occupied CPU slot.
Operating system Windows Server 2019 or newer.
Note: Non-server Windows versions cannot ensure 10 Gbps speeds. Other platforms must meet hardware requirements above.

Operating system

Windows (x64)

  • Windows 10 or newer (x64)
  • Windows Server 2008 R2 or newer

Linux (x64)

  • glibc 2.17 or newer

Hardware requirements

Based on the number of encrypted Agent connections

Deployment Size CPU System memory
10,000 connections 4 core or higher 8 GB minimum
